Product description

HELLA X-Treme 3 inch LED Driving Light Set | 5,700 Lumens Spot

The HELLA X-Treme 3 inch LED driving light set 1FE 358 233-841 consists of two compact LED driving lights with a focused Spot beam. Each light delivers 5,700 lumens and features the distinctive X-shaped position light in white or amber. The combination of compact dimensions, focused illumination and a complete twin-light kit makes this X-Treme version suitable when additional long-range lighting is required.

Spot beam for focused long-range illumination

This version of the HELLA X-Treme features a dedicated Spot beam. Compared with the Combo and Flood versions, it concentrates the light further ahead. Each driving light delivers a measured output of 5,700 lumens and features 28 LEDs, 60W power consumption and a 5700K colour temperature.

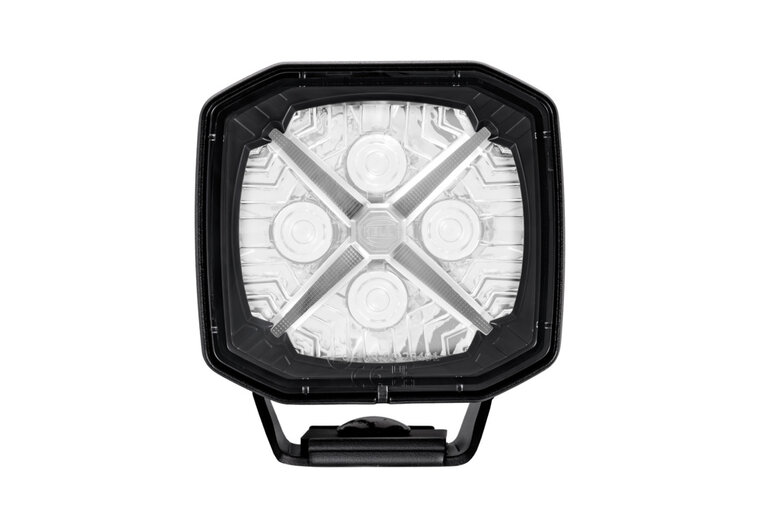

Distinctive white or amber X position light

The integrated X-shaped LED position light creates the characteristic HELLA X-Treme appearance. It can be operated in white or amber, combining the functional Spot beam with a distinctive light signature.

Compact 3 inch kit with mounting components

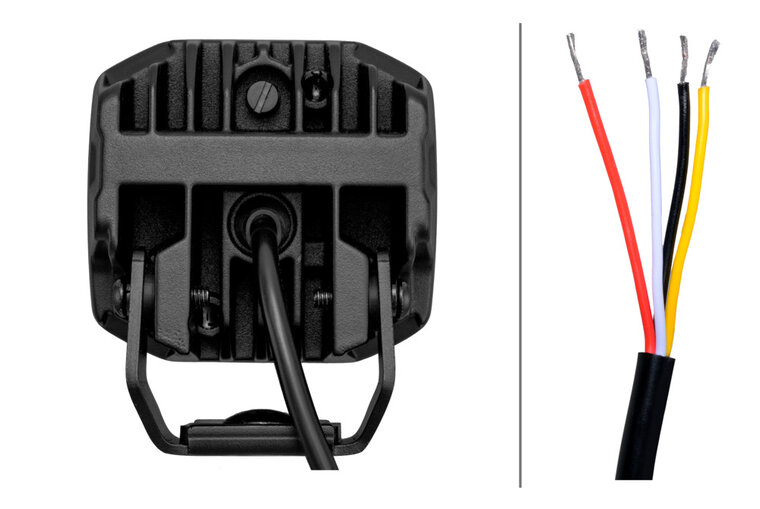

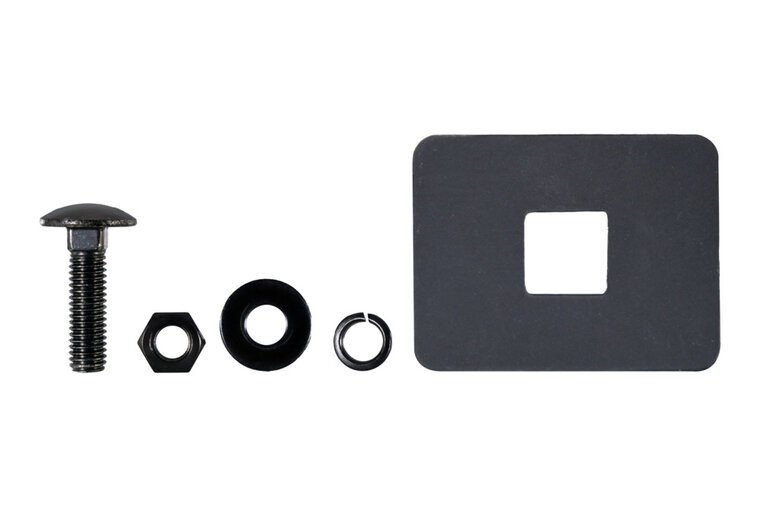

Both driving lights feature a black aluminium housing and polycarbonate lens. The compact 3 inch format is combined with a shallow mounting depth. The kit includes two LED driving lights, stainless steel mounting brackets, a wiring harness with connector, installation instructions and two smoked protective covers.

IP67/IP69K protection

The HELLA X-Treme driving lights operate on 12/24V and carry an IP67/IP69K protection rating. They also meet ECE R10 and CISPR25 Class 3 requirements for electromagnetic compatibility.

Key features

• Complete set of 2 HELLA X-Treme 3 inch LED driving lights
• Spot beam with 5,700 lumens per light
• White or amber X-shaped LED position light
• 28 LEDs, 60W and 5700K per light
• Black aluminium housing with polycarbonate lens
• Includes stainless steel brackets, wiring harness with connector and smoked protective covers
• 12/24V, ECE R10, CISPR25 Class 3 and IP67/IP69K
