HELLA Antares FF 9 inch LED driving light | 10,200 lumens High-Boost

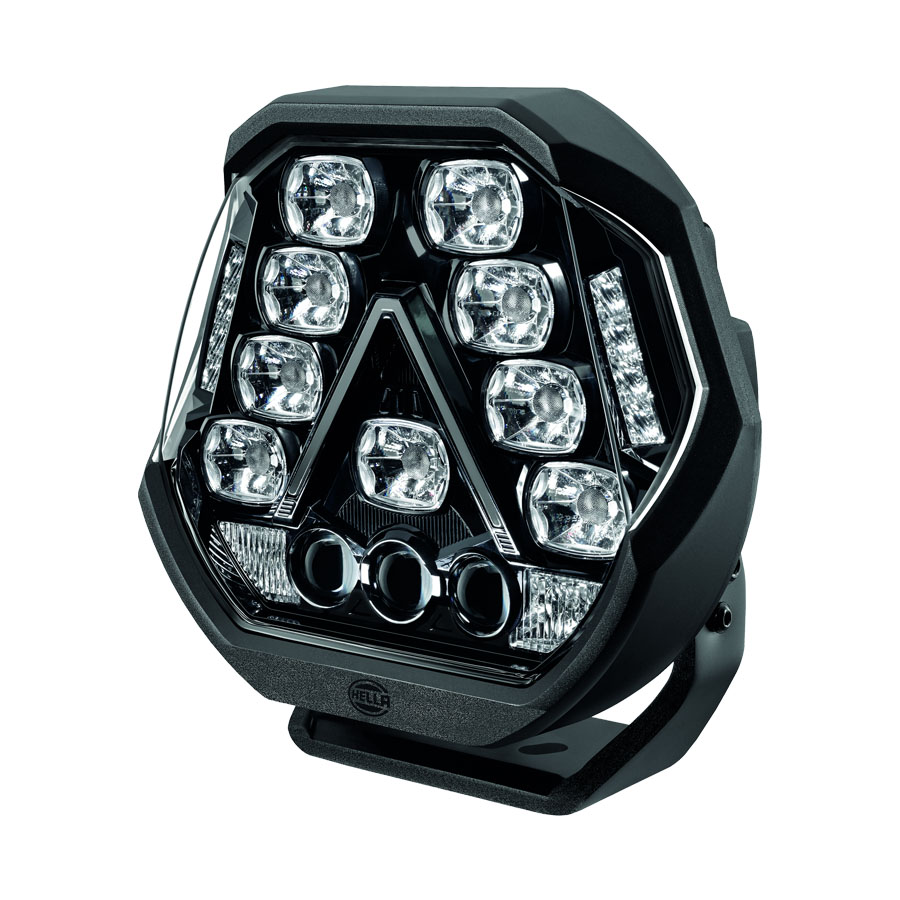

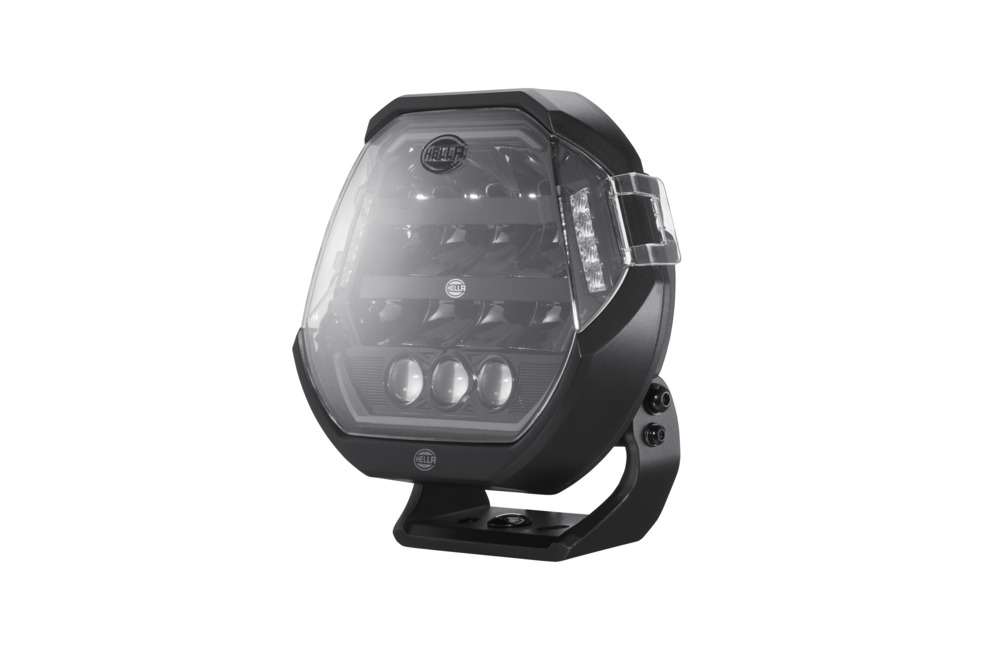

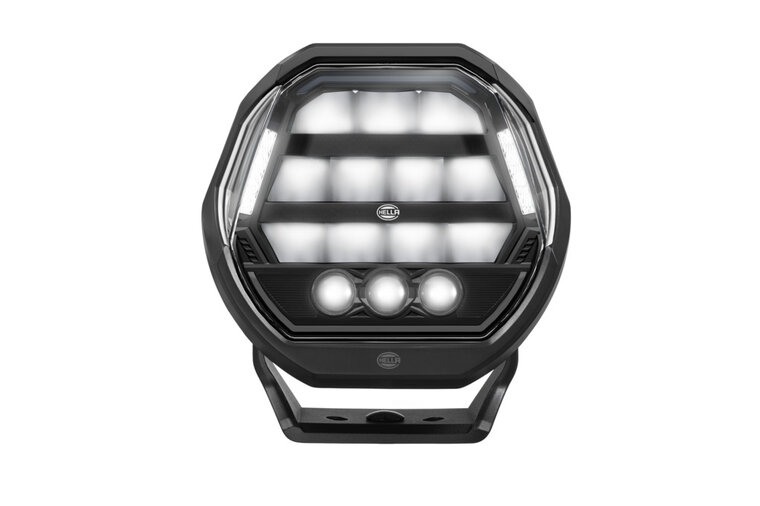

The HELLA Antares FF 9″ 1F9 358 228-881 is a versatile LED driving light featuring high beam, white or amber position light, daytime running light and High-Boost. Coming Home and Leaving Home functions are also integrated. Standard light output is 2,700 lumens, increasing to 10,200 lumens in High-Boost mode.
High beam with 10,200 lumens High-Boost

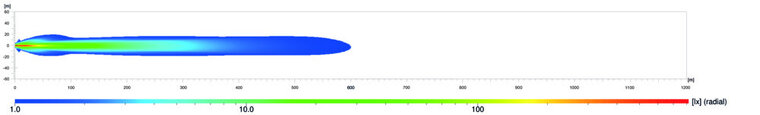

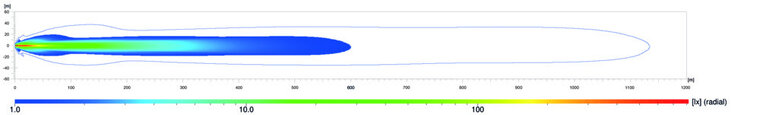

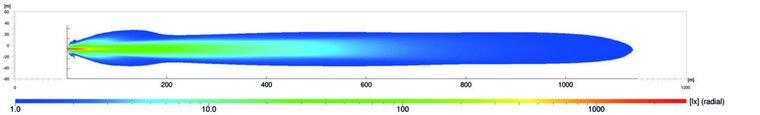

The LED high beam uses a spot light distribution and provides a maximum 1-lux range of 600 metres according to HELLA. High-Boost increases the light output to 10,200 lumens and the maximum 1-lux range to 1,140 metres. Colour temperature is 6000K and the ECE reference number is 45.

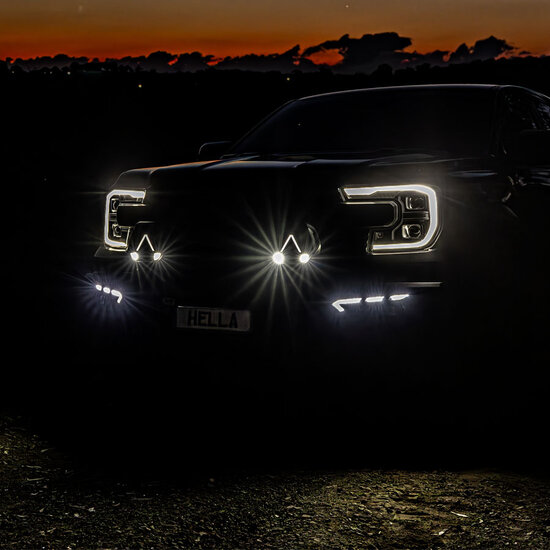

White and amber position light with DRL

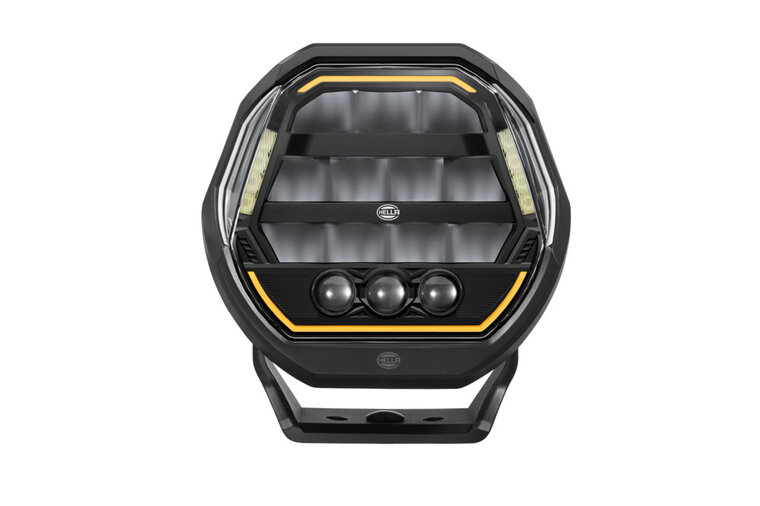

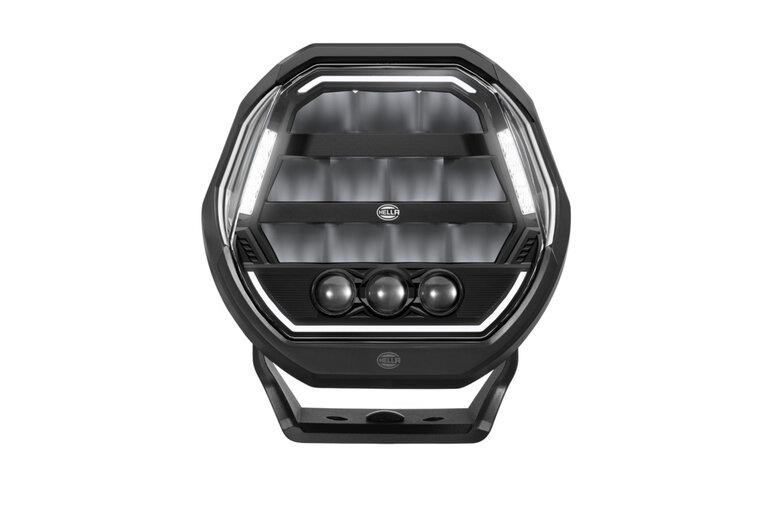

In addition to high beam, the Antares FF 9″ features an LED position light in white or amber and an LED daytime running light. Coming Home and Leaving Home functions further expand its lighting capabilities. This version does not feature the R65 warning flasher available on a separate Antares FF 9″ version.
Aluminium housing with IP67/IP69K protection

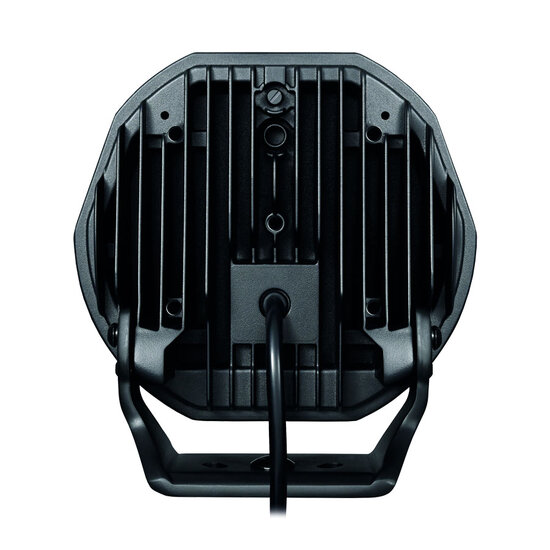

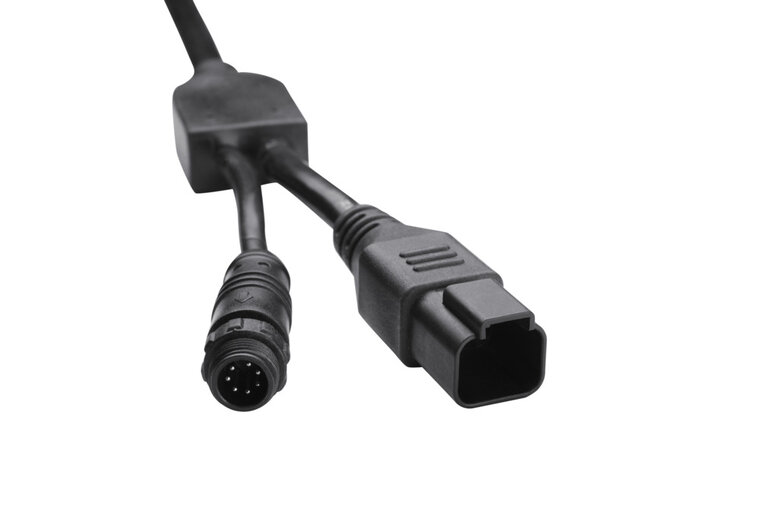

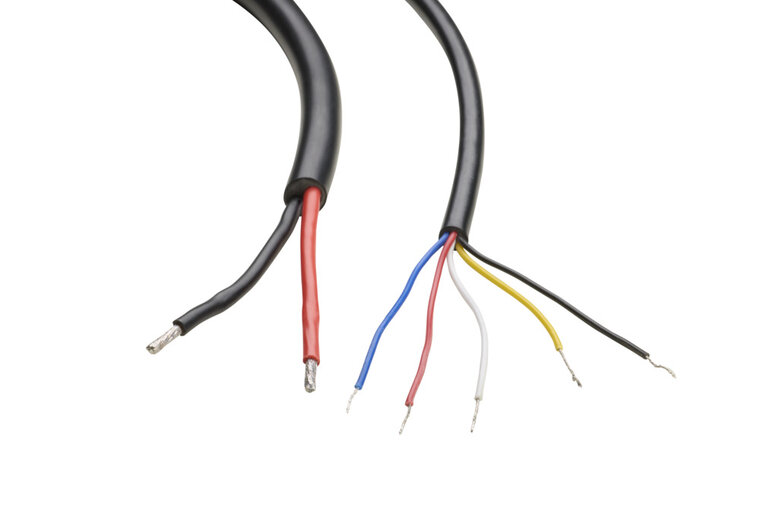

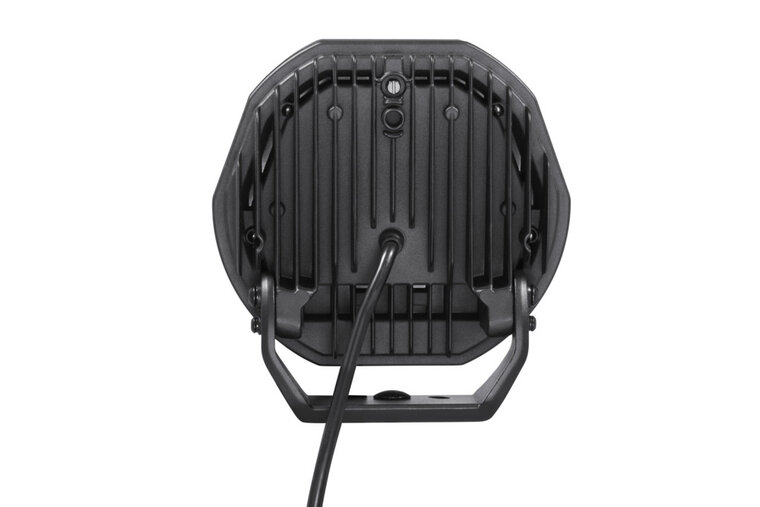

The black housing is made from aluminium and the clear lens from polycarbonate. HELLA specifies IP67/IP69K protection according to ISO 20653. The lamp operates from 10-30V and is specified for 12/24V systems. Connection is via a DEUTSCH plug and round plug with a 1.5 metre cable.
Key features
- LED high beam with spot distribution and High-Boost
- 2,700 lumens standard light output
- 10,200 lumens light output in High-Boost
- White/amber LED position light and LED DRL
- Coming Home and Leaving Home functions
- 6000K colour temperature
- ECE R10/R148/R149 and reference number 45
- IP67/IP69K according to ISO 20653
- 12/24V, operating range 10-30V

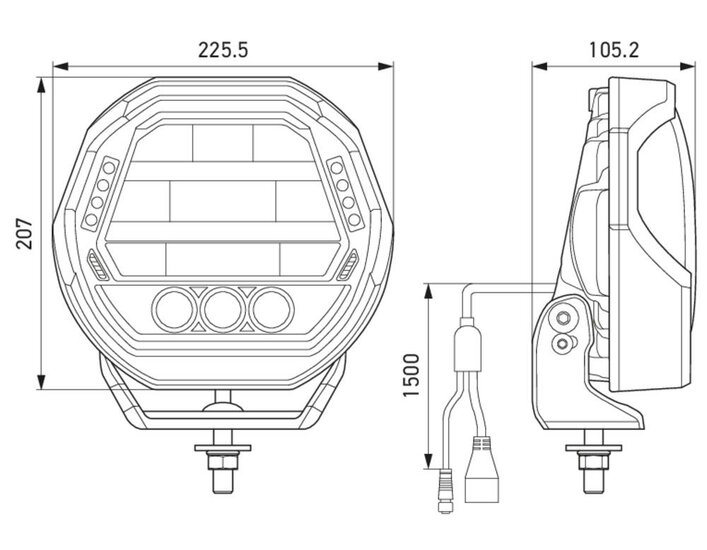

- Dimensions: 225 x 207 x 105 mm
- Overall height including bracket: 231.5 mm
- HELLA part number 1F9 358 228-881
