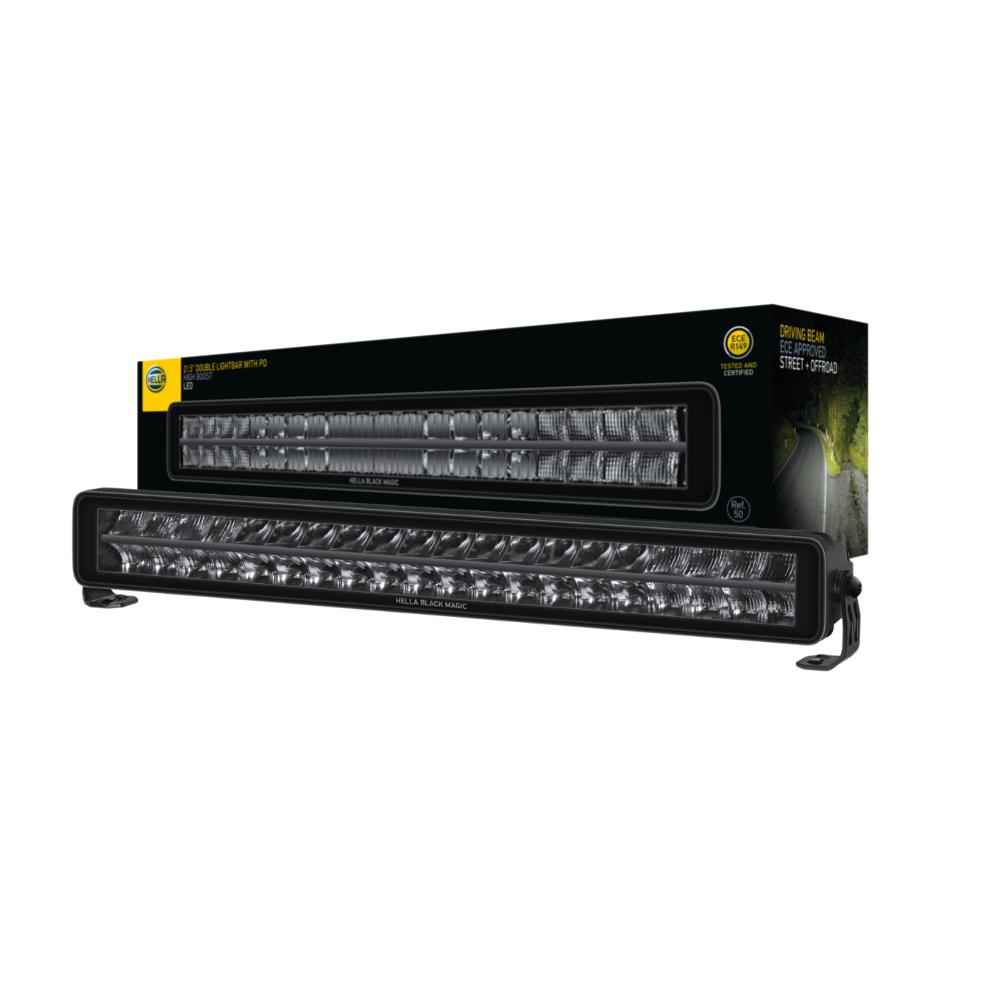

HELLA Black Magic Edgeless Pro 21.5 inch Double Row LED Lightbar | 4,870 Lumens

The HELLA Black Magic Edgeless Pro 21.5 inch Double Row 1FJ 358 236-041 combines compact dimensions with a dual-row LED design and focused Spot beam. The lightbar delivers 4,870 effective lumens and features ECE high beam, a white or amber position light and High Boost. In High Boost mode, effective output increases to 10,246 lumens.

Double Row Spot beam with ECE high beam

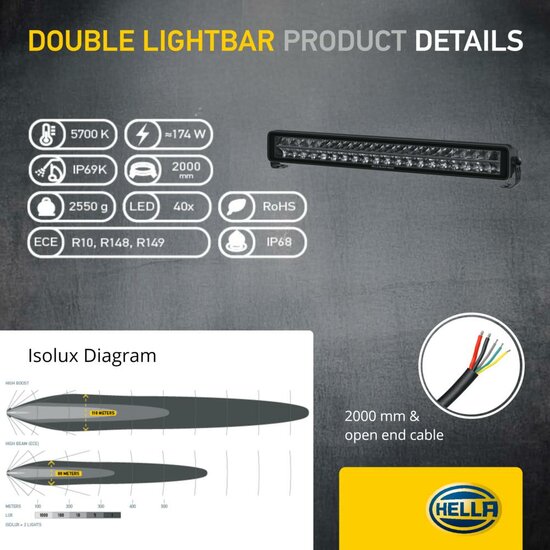

Unlike the longer Single Row versions in the Edgeless Pro range, this 21.5 inch model uses a Double Row LED configuration. Its 40 LEDs deliver an effective output of 4,870 lumens. The focused Spot beam reaches 464 metres at 1 lux in the main light function and has an ECE reference number of 50.

High Boost increases output to 10,246 lumens

High Boost allows the lightbar to deliver its maximum light performance. Effective output increases to 10,246 lumens, while maximum beam range reaches 663 metres at 1 lux. The specified colour temperature is 5700K.

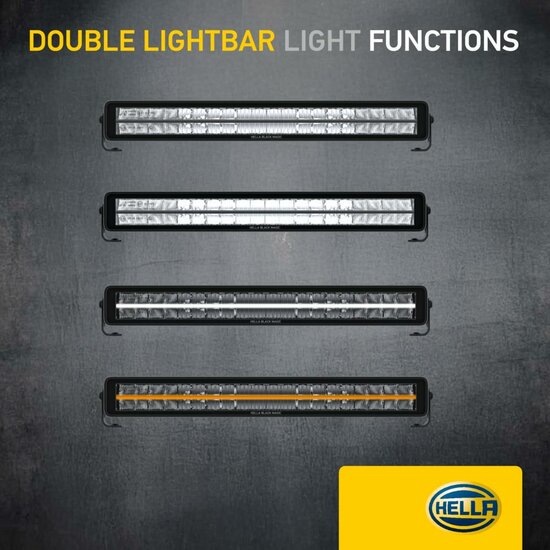

White or amber position light with Welcome & Goodbye

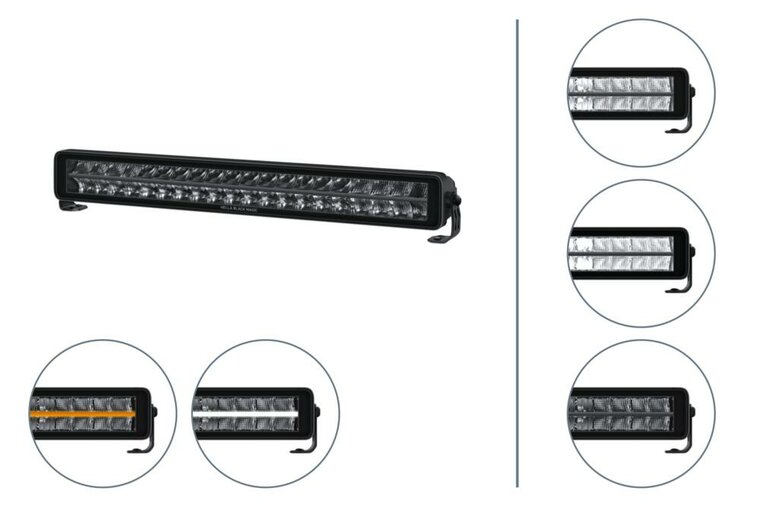

In addition to the high beam, the Black Magic Edgeless Pro features an integrated LED position light in white or amber. The Welcome & Goodbye function creates a moving light signature when activated, adding the distinctive appearance of the Edgeless Pro series.

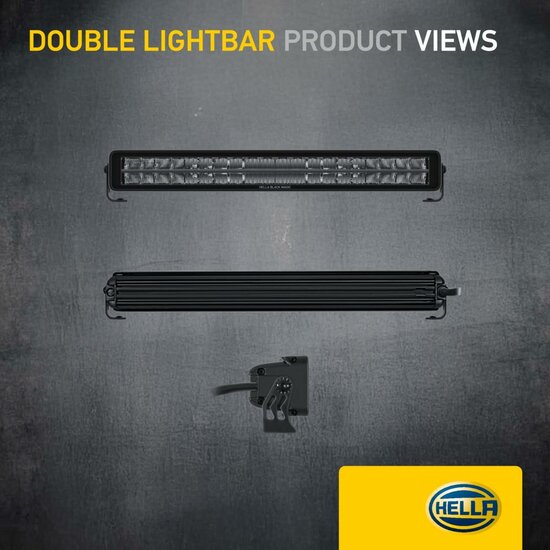

Compact Double Row housing with flexible mounting

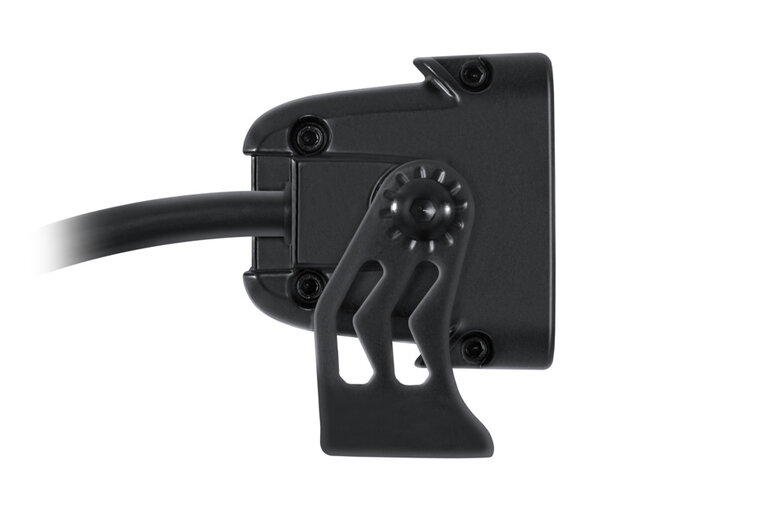

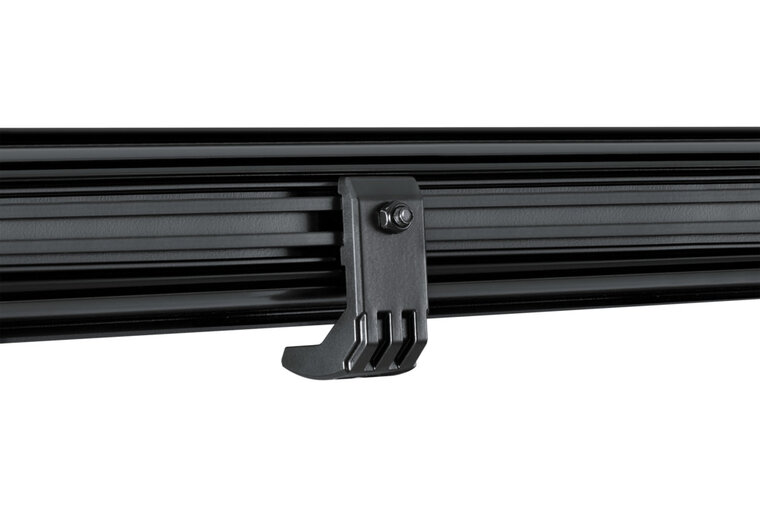

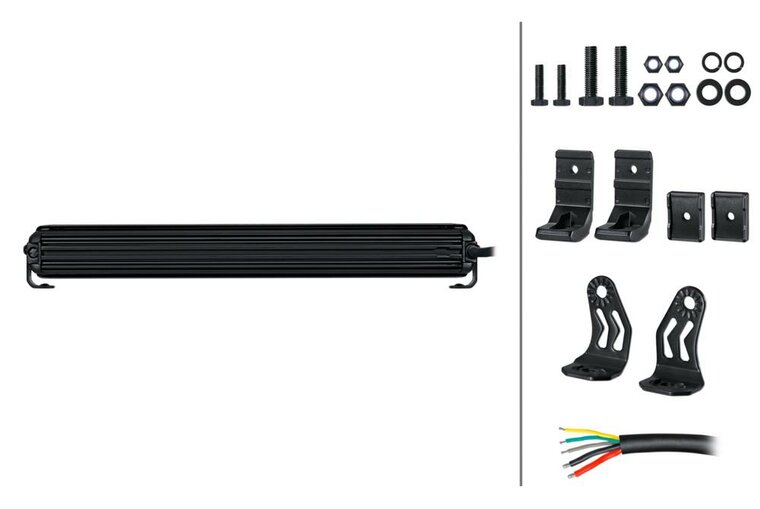

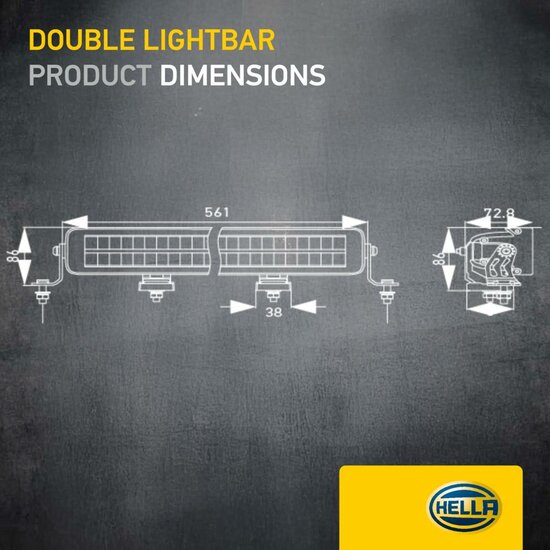

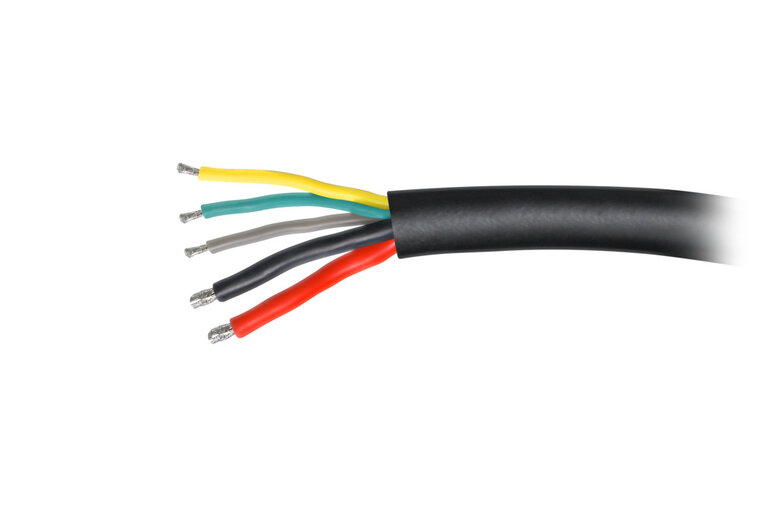

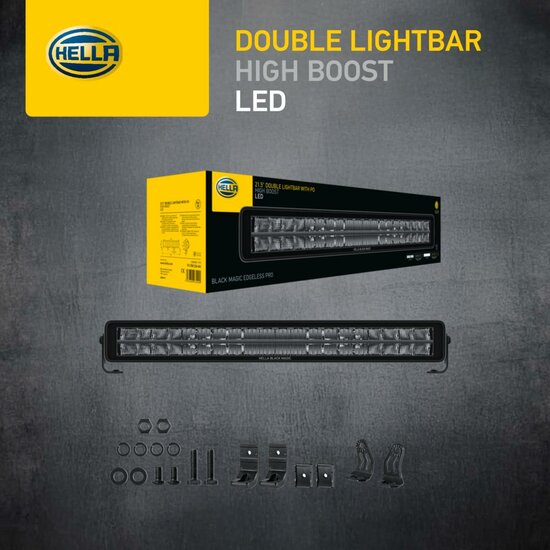

At 561 mm long, this version combines a relatively compact width with two rows of LEDs. The black aluminium housing features a protective coating and clear polycarbonate lens. The lightbar is supplied with a 2,000 mm cable with open ends, two side brackets, two rear mounting brackets and mounting hardware.

12/24V, IP68/IP69K and ECE approved

The Edgeless Pro operates on 12/24V within a 10-30V range. Power consumption is 74W in ECE mode and 162W in High Boost mode. Protection is rated to IP68/IP69K. The approved functions comply with ECE R10, ECE R148 and ECE R149.

Key features

• 21.5 inch Double Row LED lightbar with Spot beam
• 4,870 effective lumens in ECE mode
• High Boost with 10,246 effective lumens
• 40 LEDs and 5700K colour temperature
• White or amber position light with Welcome & Goodbye function
• 561 mm long with black aluminium housing
• 12/24V and IP68/IP69K
• ECE R10/R148/R149 and reference number 50

Note: ECE approval for public-road use does not apply to High Boost mode. The amber position light does not have ECE R148 approval.
