Product description

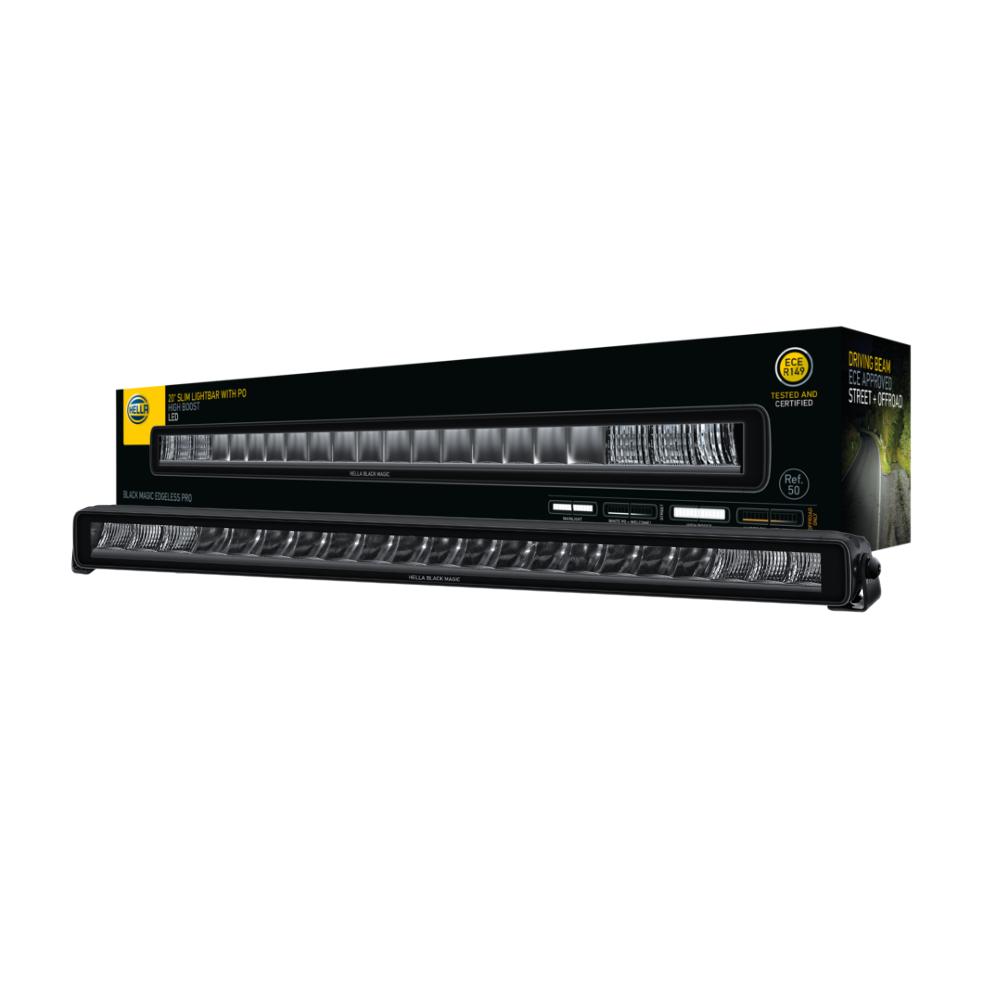

HELLA Black Magic Edgeless Pro 20 inch LED Lightbar | ECE High Beam

The HELLA Black Magic Edgeless Pro 20 inch 1FJ 358 236-001 is a slim LED lightbar combining an ECE-approved high beam with a white or amber position light and High Boost mode. Its contemporary edgeless design is combined with an aluminium housing developed for demanding conditions.

ECE high beam with additional High Boost mode

The lightbar features an ECE high beam with reference number 50. HELLA also equips the Edgeless Pro with a High Boost mode for maximum light performance. This combines an approved high beam function for road use with additional light performance for situations where High Boost mode may be used.

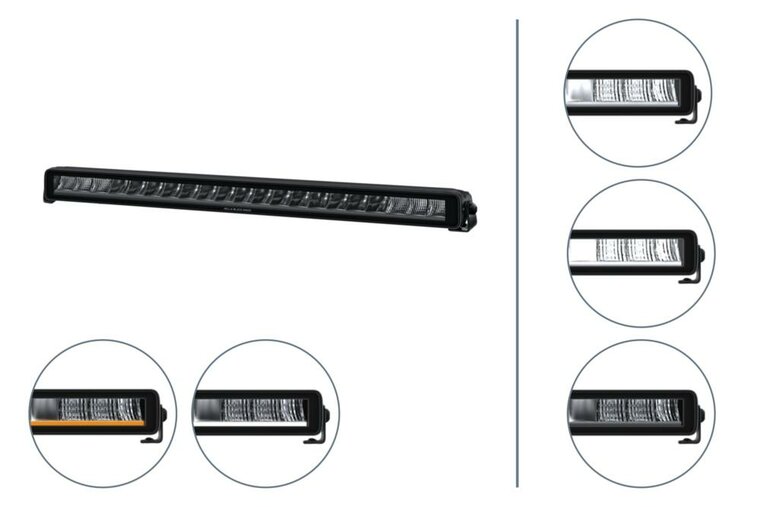

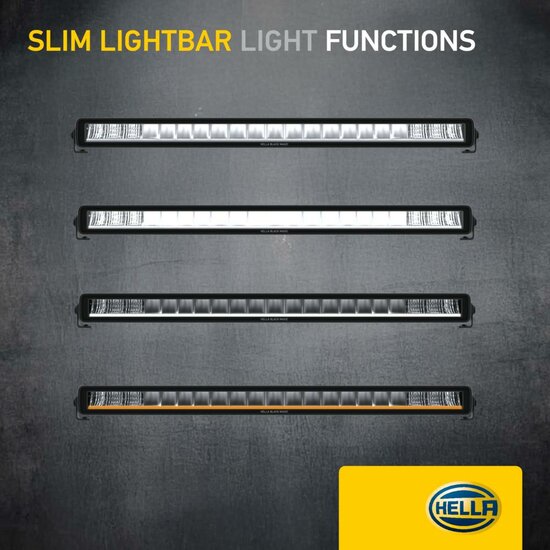

White or amber position light with welcome/goodbye function

In addition to the high beam, the Black Magic Edgeless Pro features an LED position light that can operate in white or amber. HELLA combines this with a welcome/goodbye light function, giving the lightbar a distinctive light signature in addition to its functional illumination.

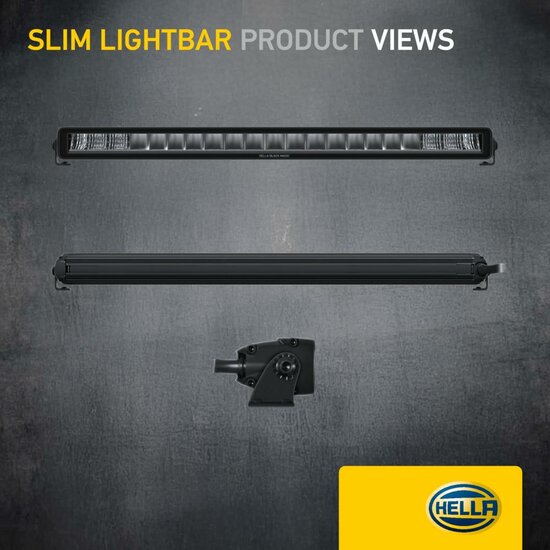

Slim edgeless design with flexible mounting

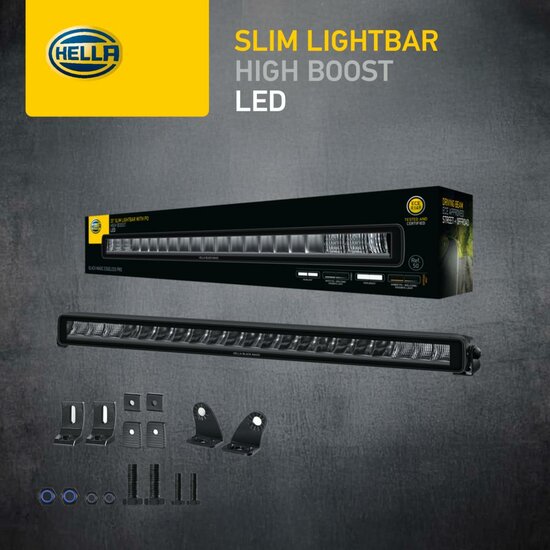

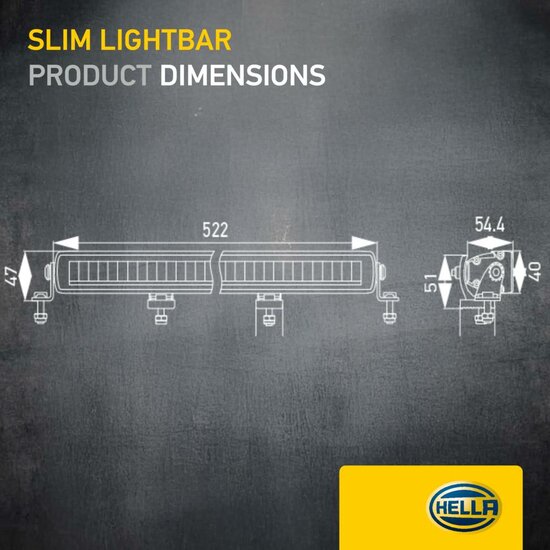

The 20 inch lightbar features an aluminium housing with a polycarbonate lens. The housing has a protective coating designed to improve corrosion resistance. The lightbar measures 522 mm in length and is supplied with a 2,000 mm cable with stripped wire ends. Two side brackets, two rear mounting brackets and mounting hardware are included.

12/24V, IP68/IP69K and ECE approved

The lightbar operates on 12/24V and has a rated power of 47W. Its IP68/IP69K rating provides protection against dust and water. This version also complies with ECE R10, ECE R148 and ECE R149.

Key features

• 20 inch HELLA Black Magic Edgeless Pro LED lightbar
• ECE high beam with reference number 50 and High Boost mode
• White or amber LED position light with welcome/goodbye function
• 12/24V, 47W and 5700K
• IP68/IP69K and ECE R10/R148/R149
• Aluminium housing with polycarbonate lens
• Includes 2,000 mm cable, side brackets, rear brackets and mounting hardware
