Product description

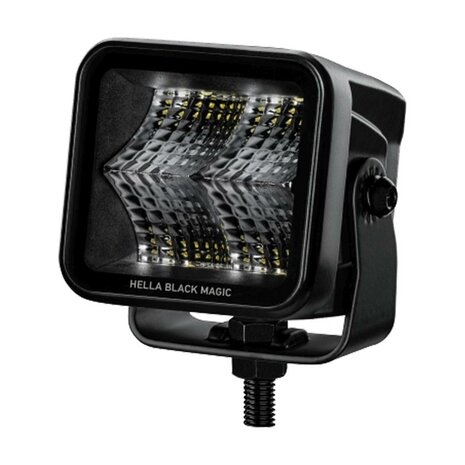

HELLA Black Magic Cube 2.7 inch LED Work Light | 1,400 Lumens

The HELLA Black Magic Cube 2.7 inch 1FA 358 176-841 is a compact LED work light with a wide flood beam for illuminating the working area close to the vehicle. With 1,400 lumens of light output, 20W power consumption and dimensions of just 70 x 72 x 60 mm, it provides practical additional lighting where installation space is limited.

Wide flood beam for close-range illumination

HELLA specifies this Black Magic Cube for close-range illumination. Four LEDs produce 1,400 lumens with a 5700K colour temperature. Its wide light distribution makes the lamp suitable as additional working illumination on vehicles and machinery.

Compact 2.7 inch housing with flexible installation

Measuring 70 mm wide, 72 mm high and 60 mm deep, the Black Magic Cube requires little installation space. The square lamp has a black housing and uses an adjustable mounting bracket. Both upright and pendant installation are supported.

DEUTSCH DT connection and 12/24V operation

The work light operates within a 10-30V range and is therefore suitable for 12/24V electrical systems. Connection is provided by a 500 mm cable with DEUTSCH DT connector. Power consumption is 20W.

IP68/IP69K and ECE R10

The Black Magic Cube is rated IP68/IP69K and complies with ECE R10 for electromagnetic compatibility. Its high protection rating and compact construction make it suitable for demanding working environments.

Key features

• 2.7 inch LED work light with flood beam
• 1,400 lumens light output and 5700K
• 4 LEDs and 20W power consumption
• 12/24V with 10-30V operating range
• IP68/IP69K and ECE R10
• 70 x 72 x 60 mm

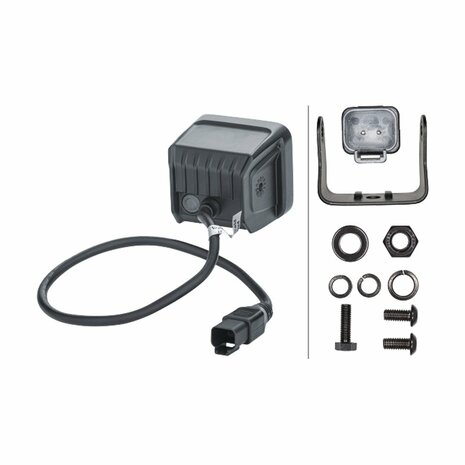

• 500 mm cable with DEUTSCH DT connector
• Upright or pendant installation with adjustable mounting bracket
