Product description

Specifications:

• Output Voltage: 24V DC
• Rated Current: 14,58 A
• Power: 350 W
• Dimming: No
• Line Regulation: ±1%
• AC Input Voltage Range: European
• Protection Class: I
• PFC: Yes
• No Load Power Consumption (typ. / max.): 0.35W / 0.5W
• IP Protection Level: IP67
• Leakage Current (max.): max. 0.7mA
• Over Current / Overload Protection: Type: auto-recovery
• Short Circuit Protection: Type: hiccup mode, auto-recovery
• Over Current / Overload Protection Range: 150% rated load
• Over Voltage Protection Range: 150% rated output voltage
• Working Temperature Range: -40~+55℃
• Storage Temperature and Humidity: -40°C to +85°C, 5 to 95% RH non-condensing
• Safety Standards: EN 61347-2-13, EN61347-1
• Withstand Voltage: I/P-O/P: 3200VAC/5mA max 60s, O/P-FG 1000V AC/5mA max 60s, I/P-FG 1600V AC/5mA max 60s
• Isolation Resistance: IN/OUT: ≥ 10MΩ / 500VDC
• EMC Emission: EN61000-3-2 Class C, EN62493:2015, EN55015
• Harmonic Current: EN61000-3-2 Class C

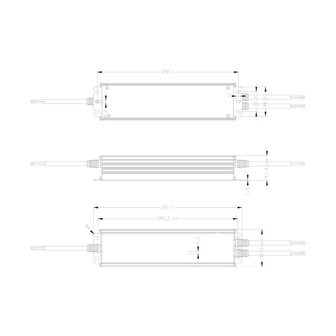

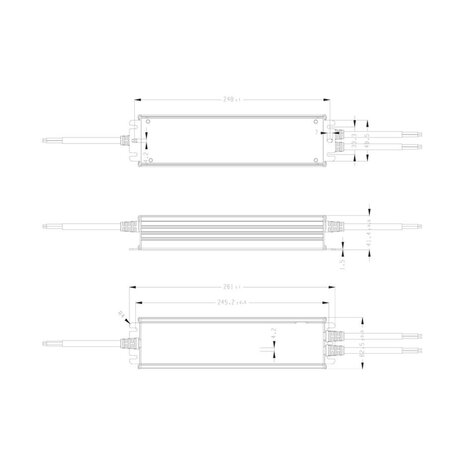

• Dimensions (L x W x H): 261× 62.5 × 41.4
• Warranty: 3 years
• Mounting: Surface
• Programmable: No
