Product description

Redtronic Tornado B47 Amber LED Beacon | Clear Lens with Suction Mount

The Redtronic Tornado B47 is a compact amber LED beacon designed for temporary vehicle installation. This version features amber LEDs, a clear lens, vacuum suction cups, a straight cable and a cigarette lighter plug. It can therefore be installed and connected without permanent mounting or fixed vehicle wiring.

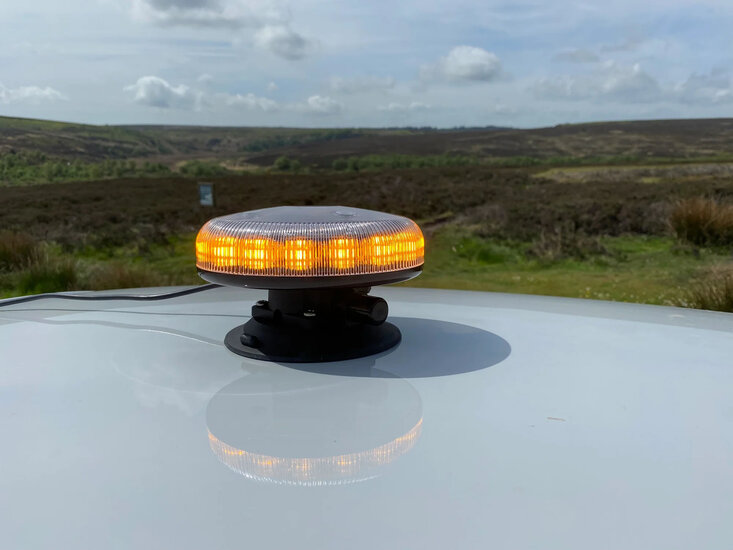

Amber warning light with 9 flash patterns

The Tornado B47 features 16 LEDs with a total LED power of 48W. Nine selectable flash patterns are available, including single, double, triple and quad flashes, two rotating patterns and a CAP168 pattern. The integrated AutoDIM function automatically adjusts the light intensity for daytime and low-light conditions.

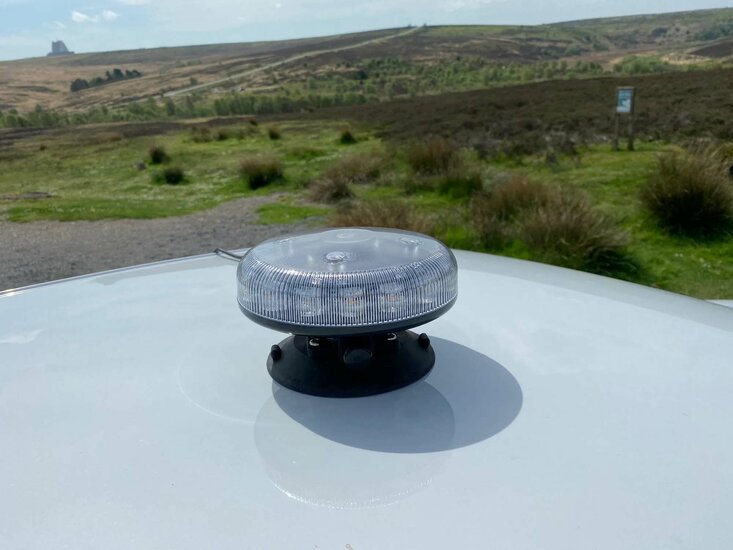

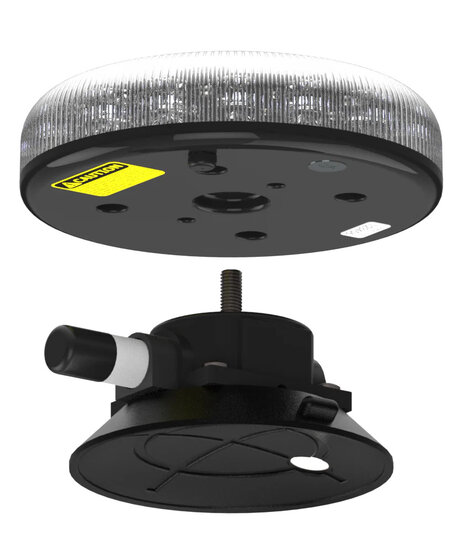

Temporary installation with vacuum suction cups

The vacuum suction cups allow temporary installation on a suitable smooth surface. Power is supplied through the cigarette lighter plug, making this version suitable for vehicles where permanent wiring or fixed roof installation is not required.

Compact design with a clear lens

The beacon has a compact, low-profile design. Its clear polycarbonate lens combines with the amber LEDs to produce a clearly visible warning signal. Including the suction mounting system, the beacon measures 154 x 98 mm.

Approved and protected for vehicle use

The amber Redtronic Tornado B47 meets ECE R65 Class 2 and is EMC R10 compliant. CISPR 25 Level 3 and ICAO/CAP168 are also specified. Its IP69K rating protects the beacon against dust and water ingress. The 11-30VDC operating range supports connection to different vehicle electrical systems.

Key features

• Amber LED warning light
• Clear polycarbonate lens
• 16 LEDs with a total LED power of 48W
• 9 selectable flash patterns
• Automatic day and night dimming with AutoDIM
• ECE R65 Class 2 and EMC R10
• CISPR 25 Level 3 and ICAO/CAP168
• Dustproof and waterproof according to IP69K
• Suitable for 11-30VDC
• Temporary installation with vacuum suction cups

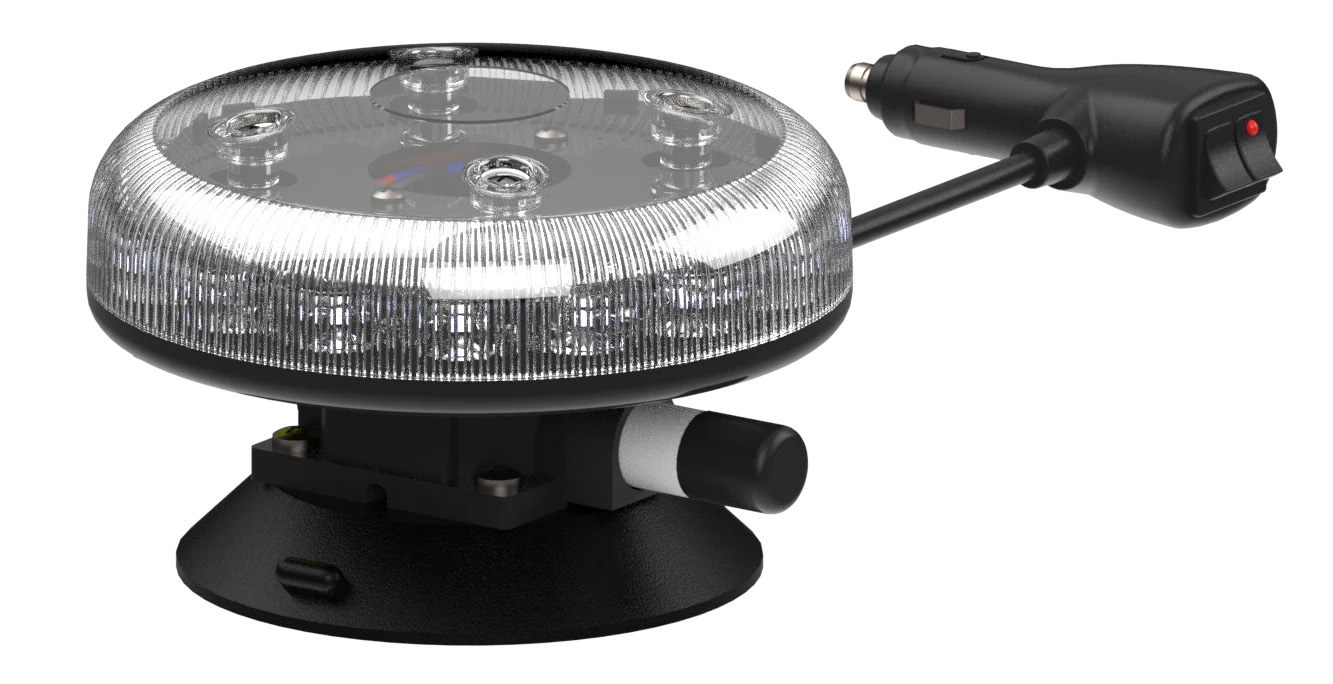

• Straight cable with cigarette lighter plug
• Dimensions including suction cups: 154 x 98 mm
• 3-year manufacturer’s warranty
