Product description

OSRAM LEDriving Cube MX180-CB Amber Extreme 171 mm LED Driving Light

The OSRAM LEDriving Cube MX180-CB Amber Extreme is a powerful multifunctional LED driving light for vehicles that require enhanced visibility and a distinctive light signature. With high beam, white and amber position lights and a boost function, it offers flexible lighting performance for demanding driving and working conditions.

Combo beam with high beam and boost function

This LED driving light features a combo beam pattern designed for both near-field and far-field illumination. The high beam delivers 3,000 lumens and a light distance of up to 280 metres at 1 lux. In boost mode, the light output increases to 7,000 lumens with a light distance of up to 440 metres.

White and amber position lights

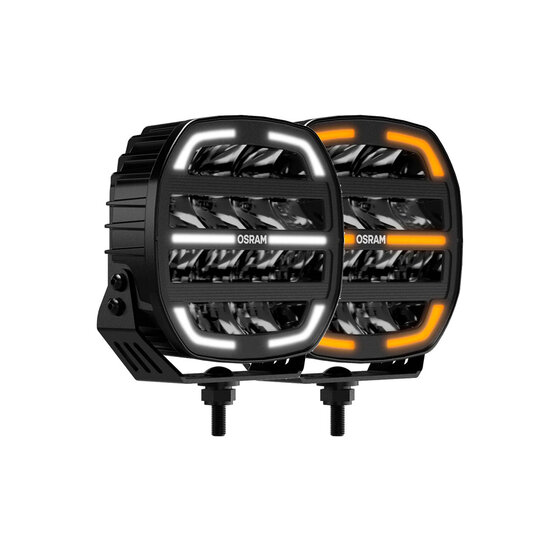

In addition to the LED high beam, the Cube MX180-CB Amber Extreme includes white and amber position lights. This gives the vehicle a modern and recognisable appearance while adding extra flexibility in different light and weather conditions.

Robust housing for demanding applications

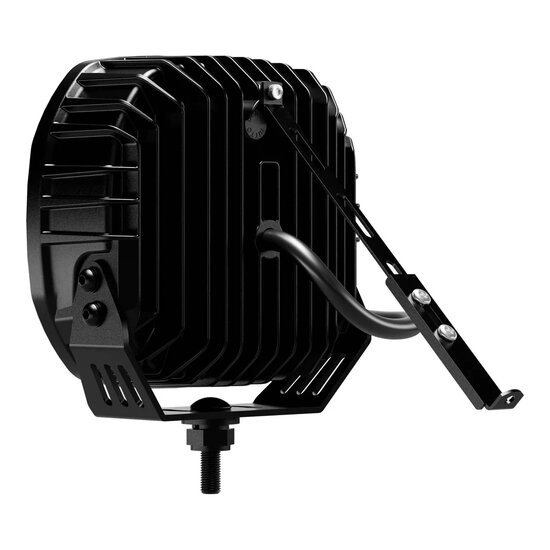

The lamp is built with an aluminium die-cast housing and a shatterproof polycarbonate lens. With dimensions of 171 x 73 x 159 mm, it is a compact yet durable solution for trucks, commercial vehicles, agricultural machinery, construction vehicles, off-road vehicles, caravans and quads.

Approvals, protection and connection

The OSRAM LEDriving Cube MX180-CB Amber Extreme operates on 12/24V and is equipped with a DT connector. It has E4 approval, ECE R10/R148/R149 and IP6K8/IP6K9K protection classes. OSRAM provides a 5-year guarantee for this product.

Main features

• 4-in-1 functionality: high beam, white position light, amber position light and boost function
• Combo beam pattern for near-field and far-field illumination
• 3,000 lumens high beam and 7,000 lumens in boost mode
• Light distance up to 280 metres with high beam and 440 metres in boost mode
• Aluminium die-cast housing with shatterproof polycarbonate lens
• IP6K8/IP6K9K dustproof and waterproof protection
• ECE R10/R148/R149 and E4 approval
• Suitable for 12/24V vehicles

Please note: the boost function and amber position light do not have ECE approval and must not be used on public roads. Always observe the applicable laws and regulations in the country of use.

• Black is ground (-)
• White is white position light (+)
• Yellow is amber position light (+)
• Red is boost (+)
• Connect blue and red to activate the ECE function
