Product description

HORPOL CUBE LZD 2877 LED rear light | progressive indicator

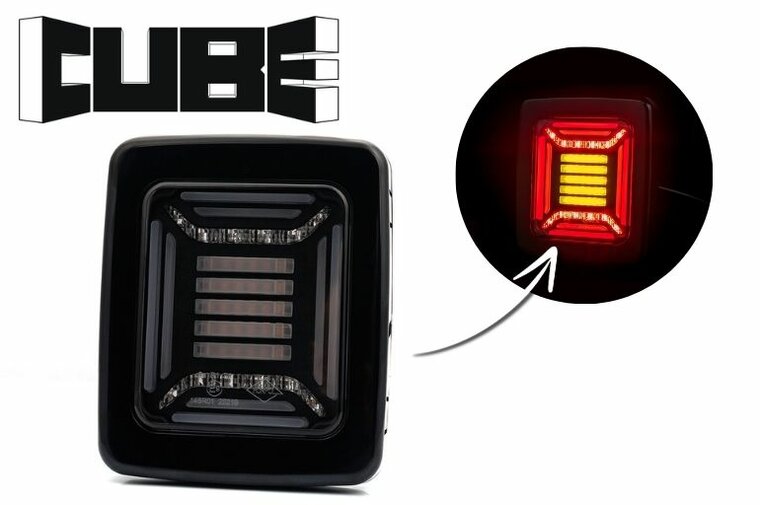

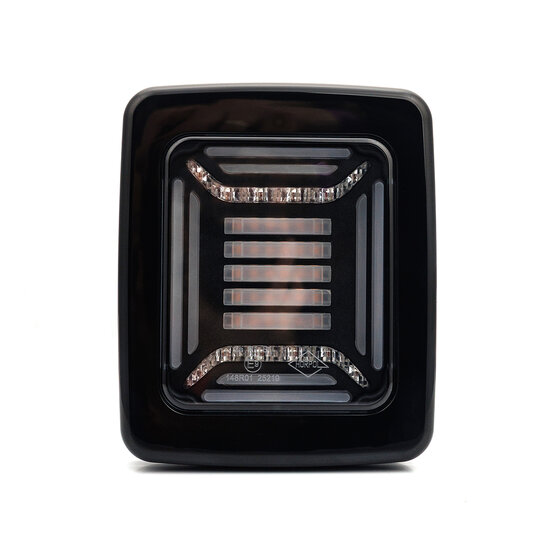

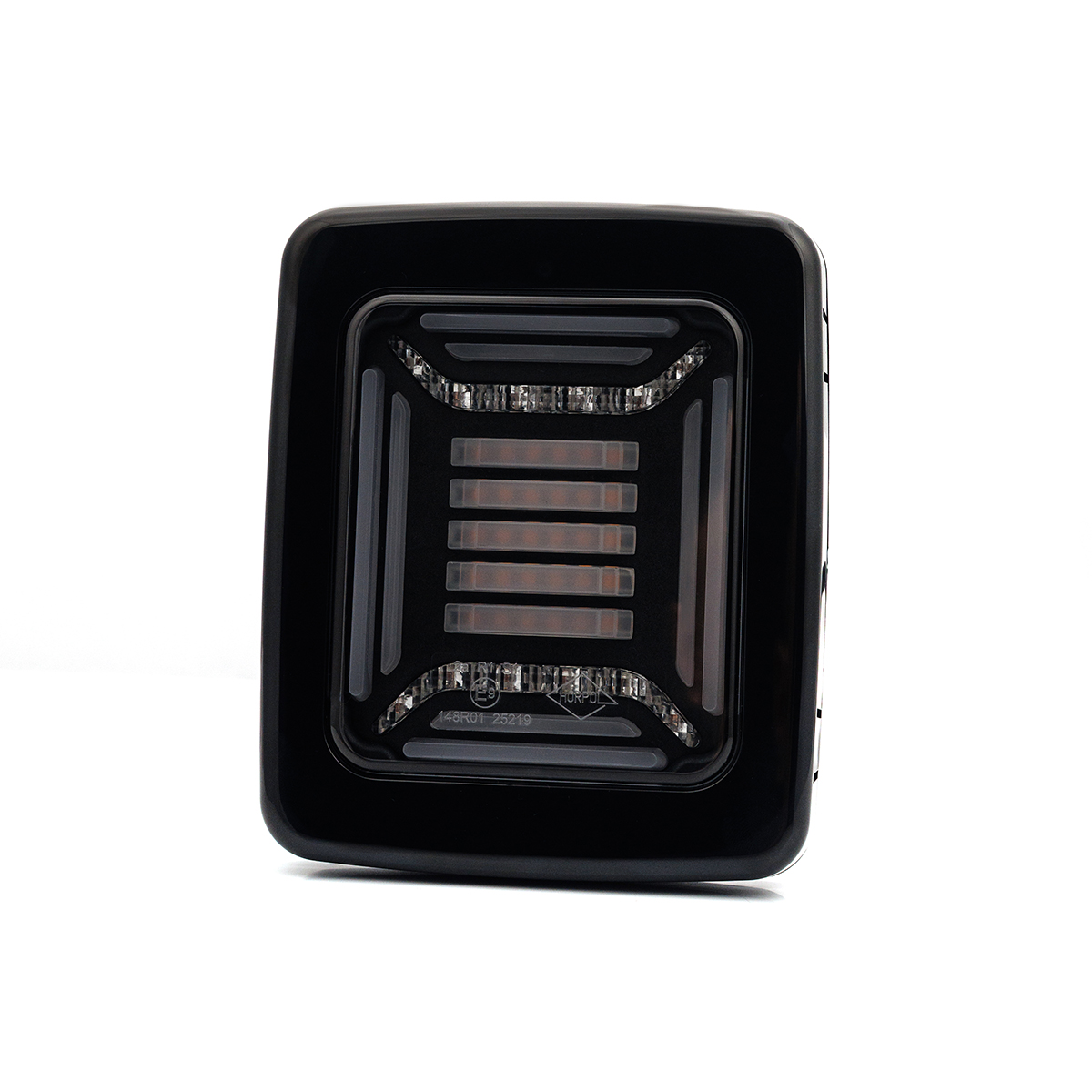

The HORPOL CUBE LZD 2877 is a multifunction LED rear light with a black outer frame and slightly tinted lens. It combines a red NEON rear position light, brake light and direction indicator and is designed for trucks, trailers, semi-trailers, agricultural machinery and special-purpose vehicles.

Three lighting functions with progressive indicator option

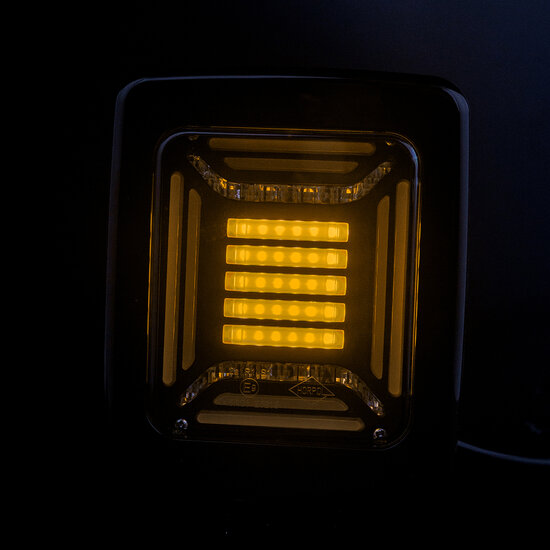

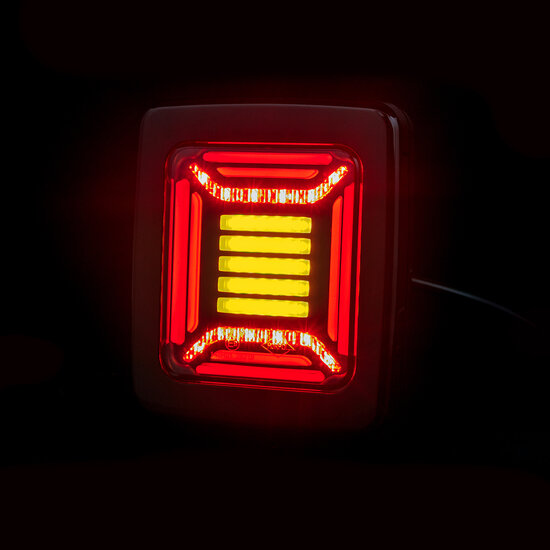

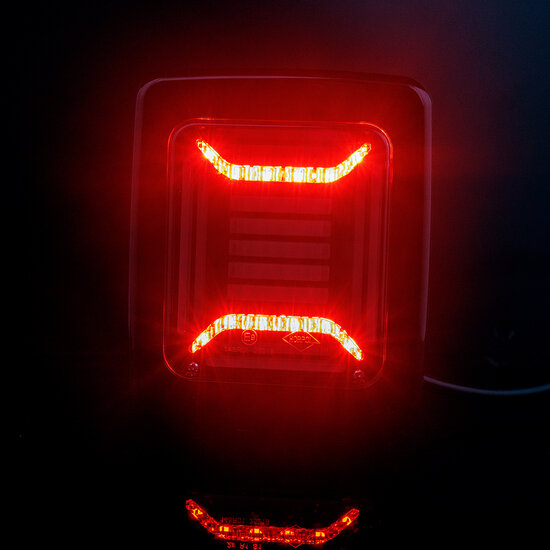

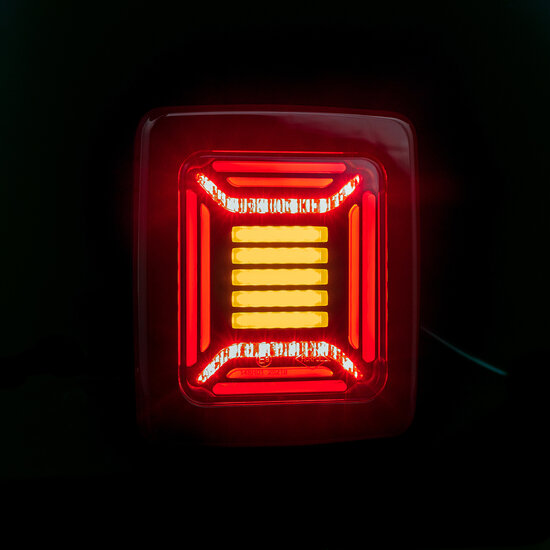

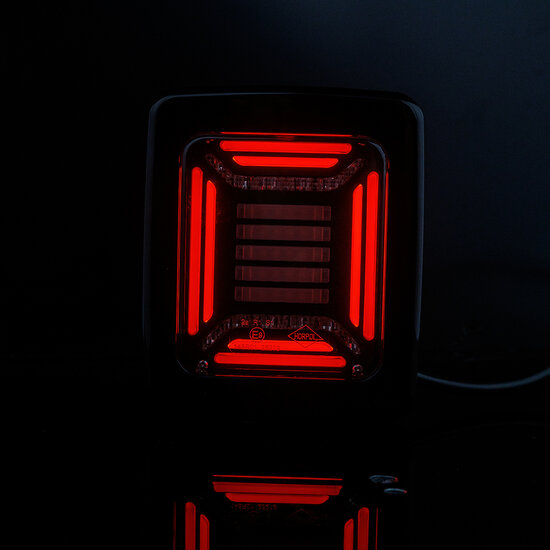

The CUBE LZD 2877 contains 98 LEDs and combines three lighting functions. The red NEON rear position light has a power consumption of 1.3/1.8W, the brake light 1.9/2.4W and the NEON direction indicator 3.3/4.4W. An additional blue wire enables a progressive indicator effect when two, three or four lights are installed side by side.

Black frame and flexible installation

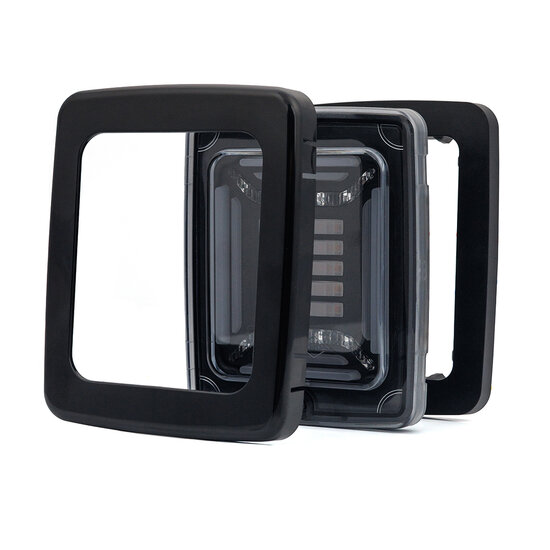

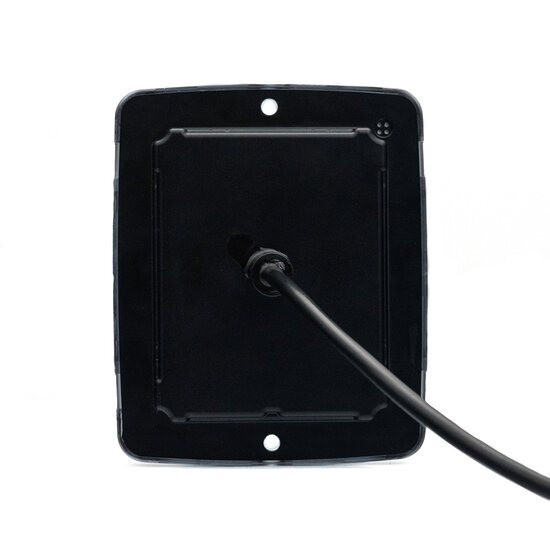

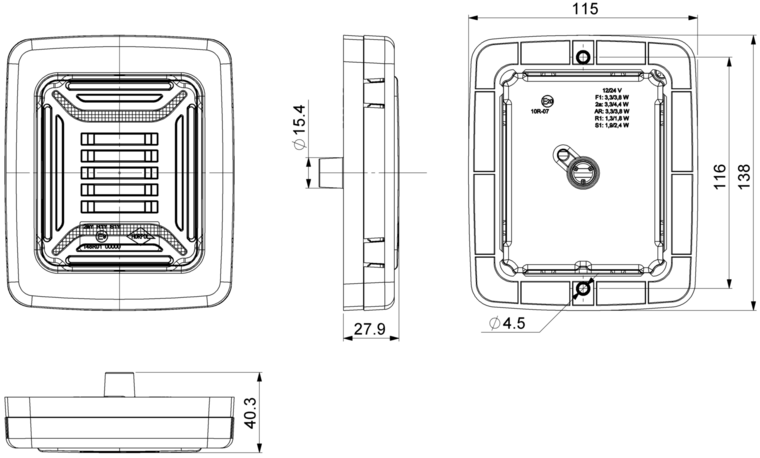

The black outer frame and slightly tinted lens give the rear light a modern appearance. It can be installed on either side of the vehicle and in horizontal or vertical positions. Installation is possible with or without the outer frame. A spacer frame is also included for installation on flat surfaces. Connection is via a 1 metre 5x0.5 mm² cable.

12/24V, IP68 and ECE R10/R148

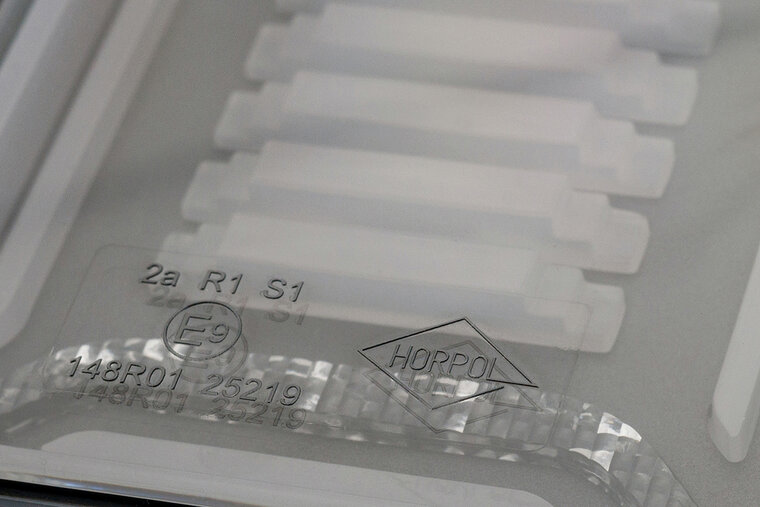

The HORPOL CUBE LZD 2877 is suitable for 12/24V vehicle electrical systems and has an IP68 protection rating. The rear light also complies with ECE R10 and R148. Its specified operating temperature range is -30°C to +50°C.

Key features

• Red NEON rear position light, brake light and direction indicator
• 98 LEDs with optional progressive direction indicator
• 12/24V, IP68 and ECE R10/R148
• Universal left/right and horizontal/vertical installation
• Black outer frame and 1 metre 5x0.5 mm² cable
