HELLA X-Treme 3 inch LED Driving Light Set | 5,700 Lumens Flood

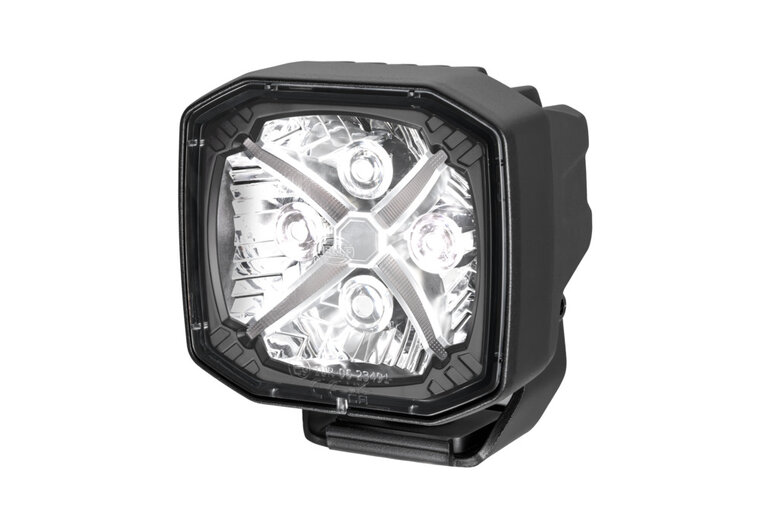

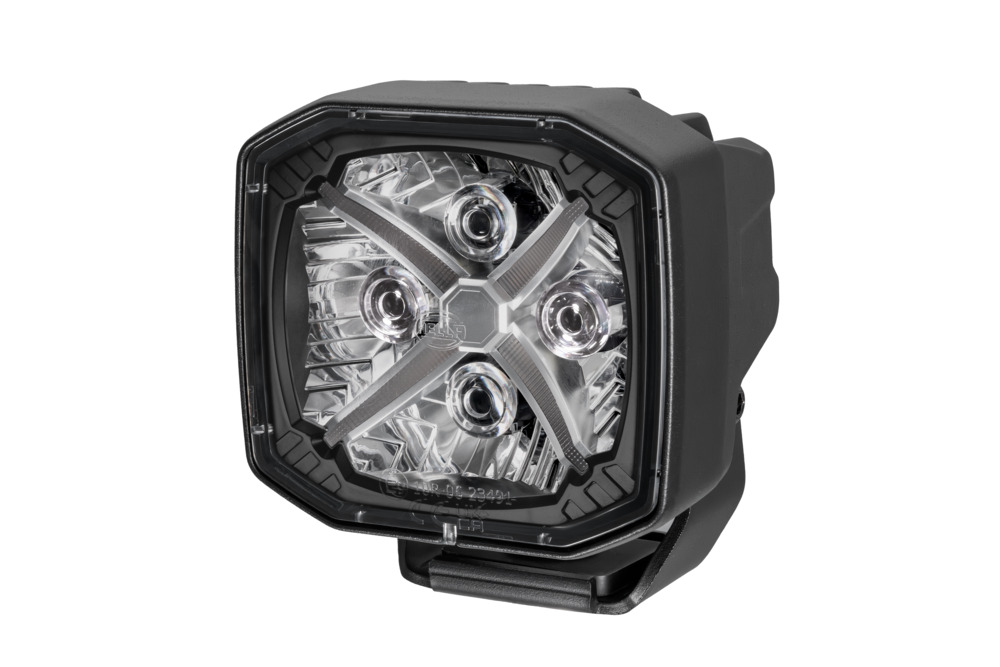

The HELLA X-Treme 3 inch LED driving light set 1FE 358 233-851 consists of two compact LED driving lights with a wide Flood beam. Each light delivers a measured output of 5,700 lumens and features the distinctive X-shaped position light in white or amber. This complete twin-light set combines broad additional illumination with a compact 3 inch housing.

Flood beam for wide light distribution

This version of the X-Treme series features a Flood beam designed to spread the light across a wide area in front of and around the vehicle. Each light delivers 5,700 lumens, uses 28 LEDs and has a power consumption of 60W. The specified colour temperature is 5700K.

White or amber X-shaped position light

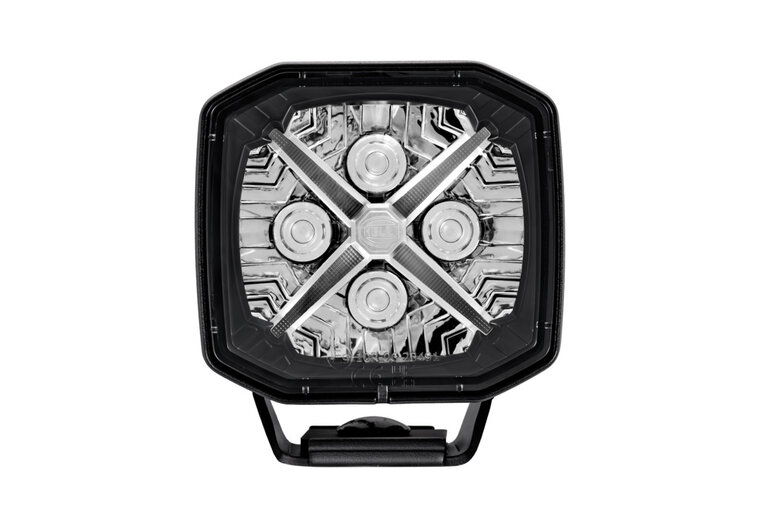

The integrated X-shaped LED position light creates the recognisable appearance of the HELLA X-Treme series. It can be operated in white or amber, combining the functional Flood beam with a distinctive light signature.

Compact 3 inch design as a complete set

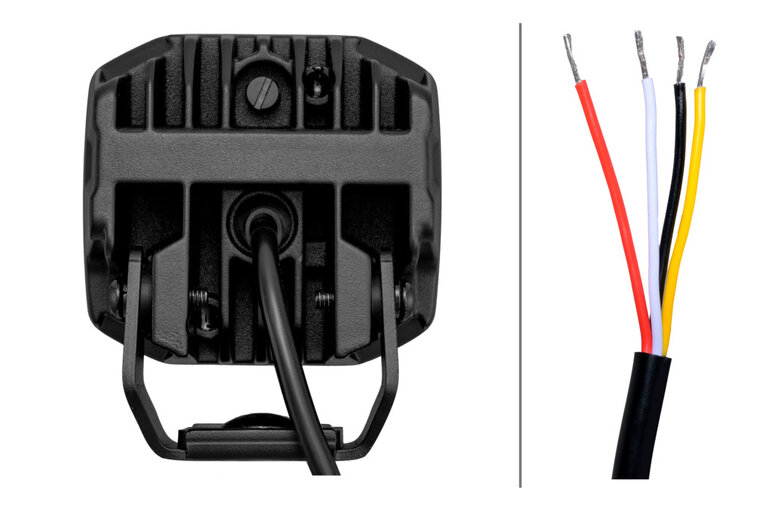

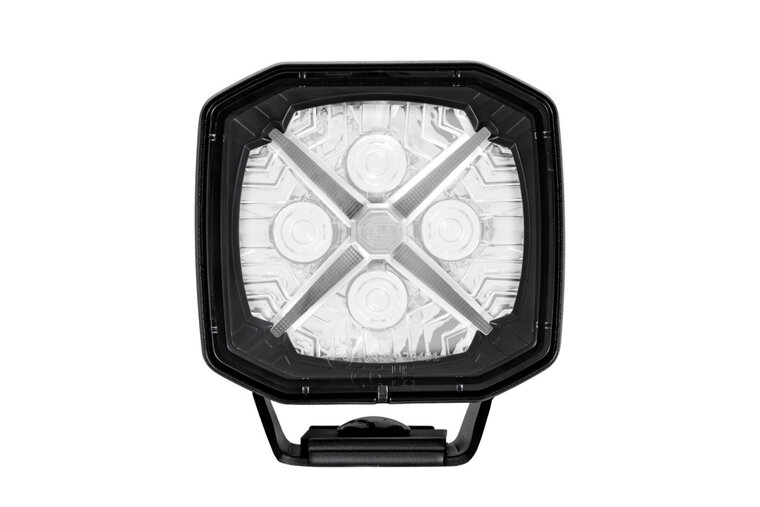

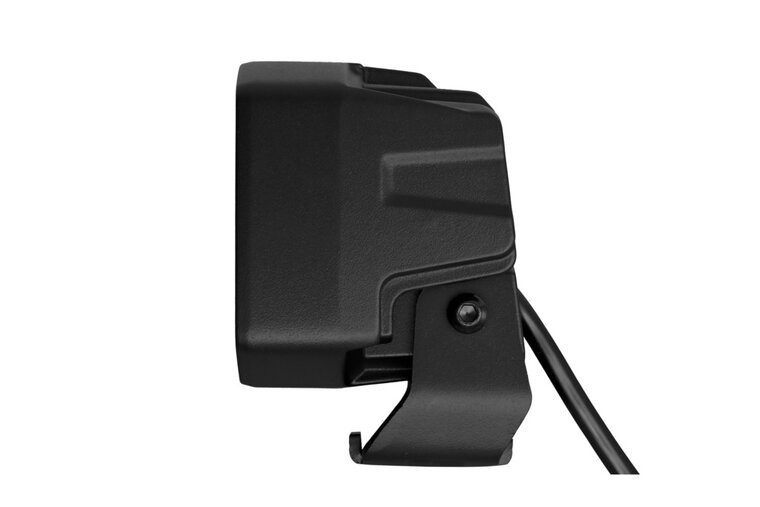

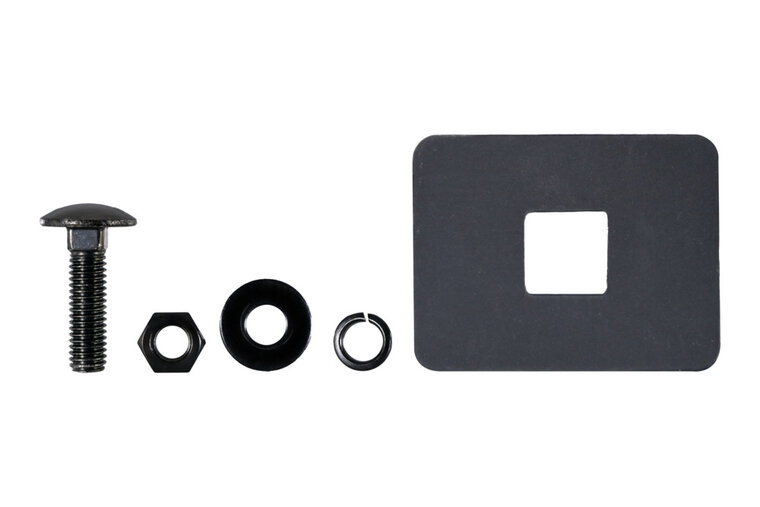

The black housing is manufactured from aluminium and combined with a polycarbonate lens. The compact 3 inch format and shallow mounting depth make the lights practical where mounting space is limited. The set includes two LED driving lights, stainless steel mounting brackets, a wiring harness with connector, installation instructions and two smoked protective covers.

IP67/IP69K and 12/24V operation

The HELLA X-Treme driving lights operate on 12/24V and carry an IP67/IP69K protection rating. ECE R10 and CISPR25 Class 3 are also specified for electromagnetic compatibility.

Key features

• Complete set of 2 HELLA X-Treme 3 inch LED driving lights
• Flood beam with 5,700 lumens per light
• White or amber X-shaped LED position light
• 28 LEDs, 60W and 5700K per light
• Aluminium housing with polycarbonate lens
• Includes stainless steel mounting brackets, wiring harness with connector and smoked protective covers
• 12/24V, ECE R10, CISPR25 Class 3 and IP67/IP69K
