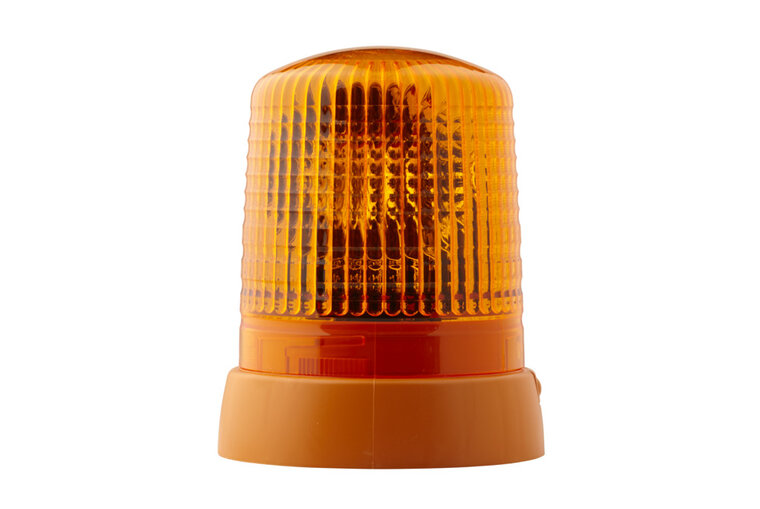

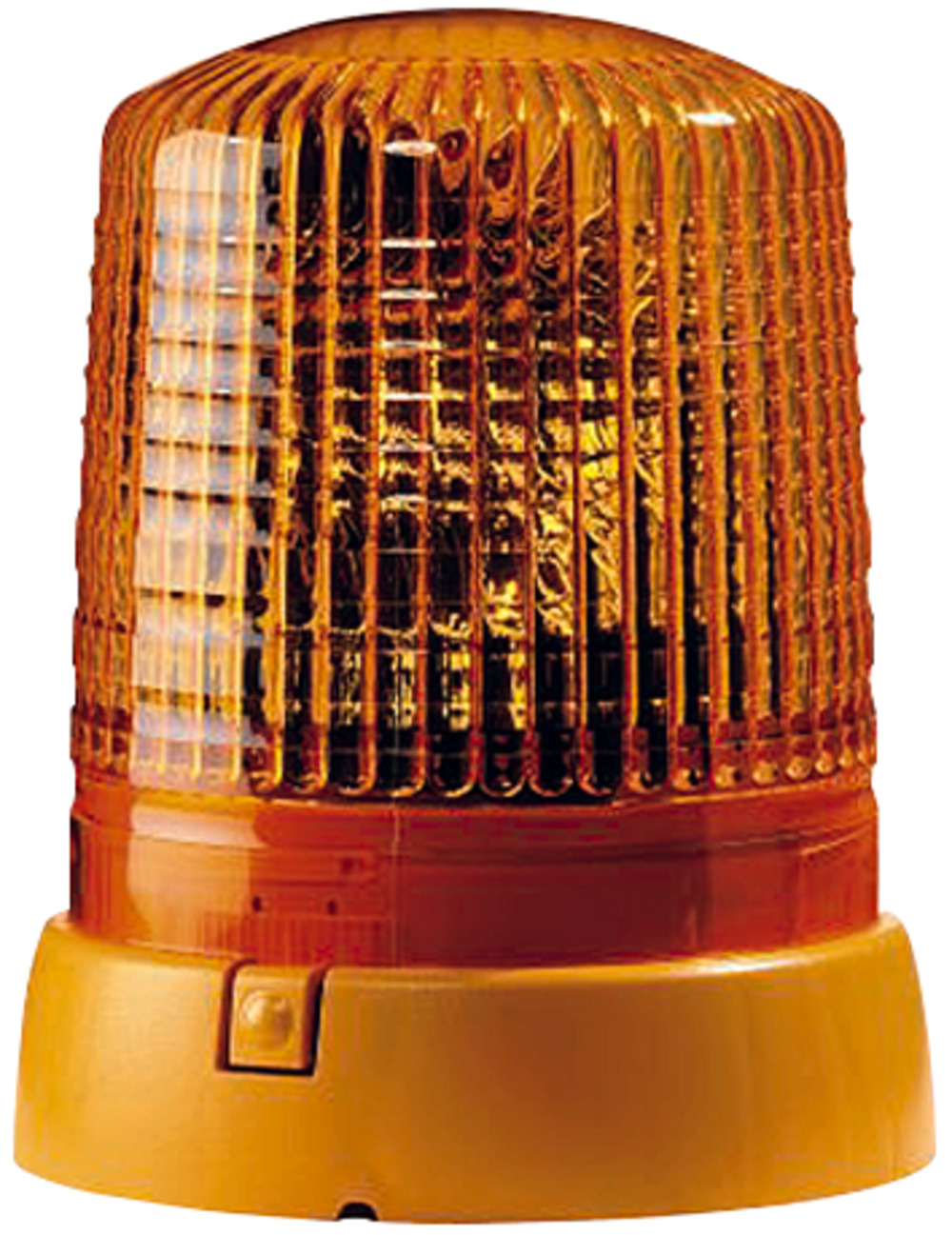

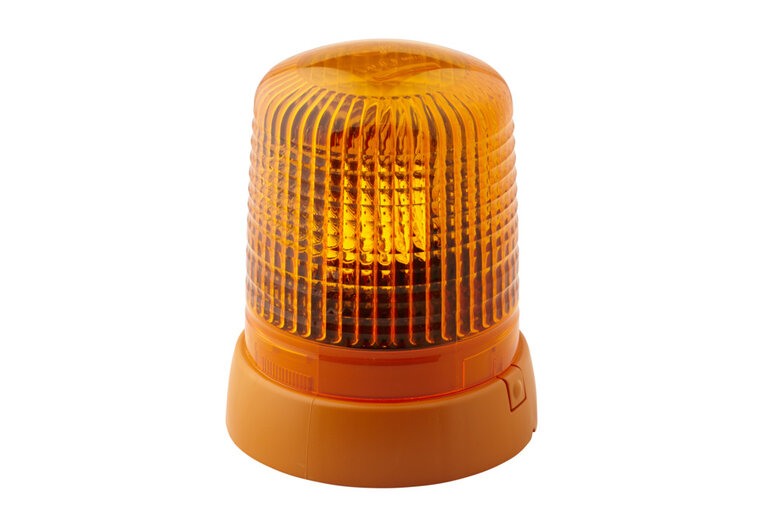

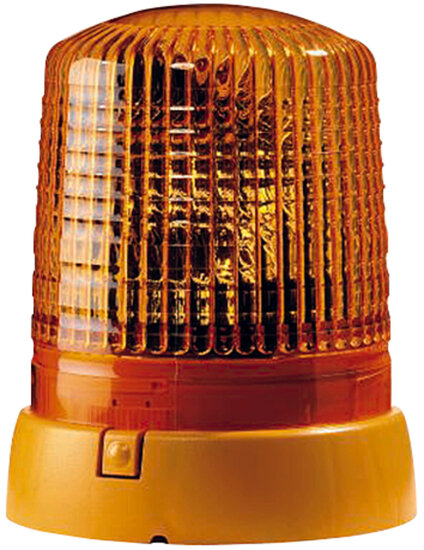

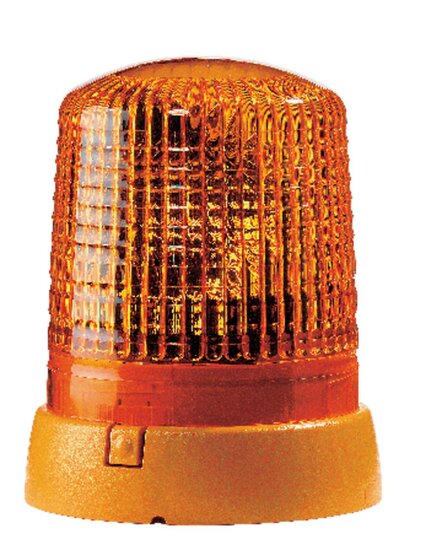

HELLA KL7000 12V Amber Revolving Beacon | surface mount

The HELLA KL7000 2RL 008 061-101 is an amber halogen revolving beacon for vehicles and machinery that require a clear rotating warning signal. This 12V version is designed for fixed surface mounting and uses a blade terminal connection.

Amber rotating warning signal

The beacon provides an amber light function with a rotating warning signal. The dome with specially designed optics creates an eye-catching signal pattern, helping the vehicle remain more visible during work, transport or on-site operation.

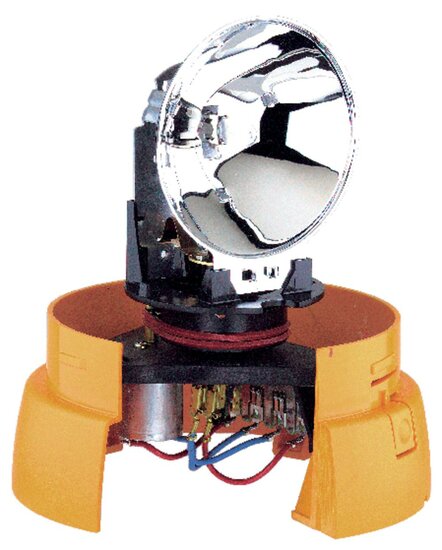

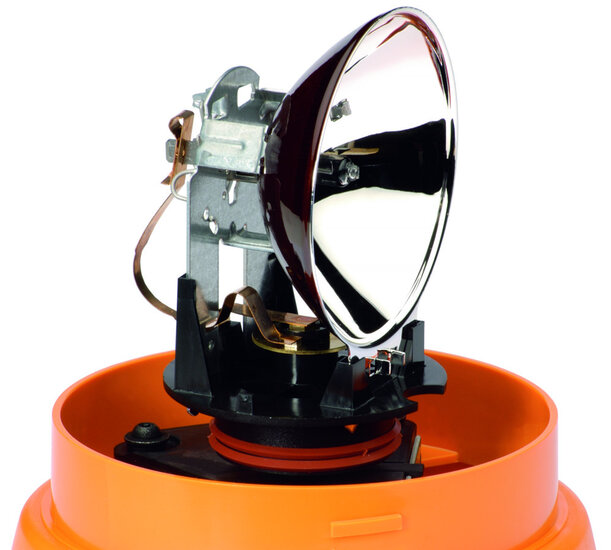

Halogen technology with bolted surface mount

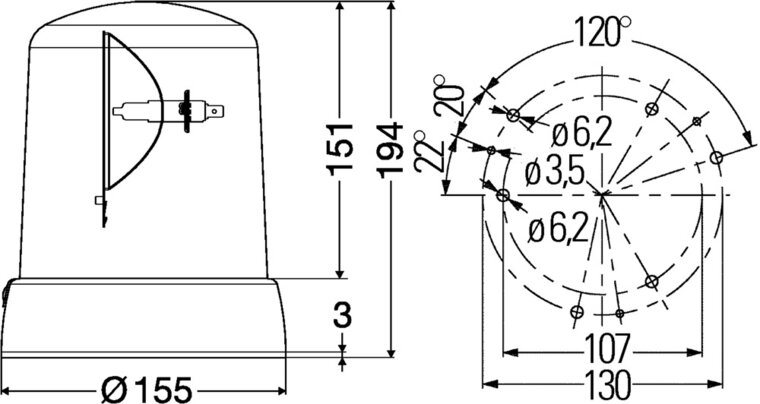

This KL7000 version uses H1 halogen technology and has a power consumption of 55W. The bolted surface-mounted design makes the beacon suitable for fixed installation on vehicles and machinery. The beacon has a height of 194 mm and a diameter of 155 mm.

Approvals and protection

The HELLA KL7000 operates on 12V and complies with ECE R10/R65. The beacon features IP5K4K/IPX9K protection, making it suitable for professional use in demanding conditions.

Main features

• Amber halogen revolving beacon from the HELLA KL7000 series
• Rotating warning signal
• 12V version with H1 halogen bulb
• 55W power consumption
• Surface-mounted design with bolted installation
• Blade terminal connection
• Height 194 mm and diameter 155 mm
• ECE R10/R65 approved
• IP5K4K/IPX9K protection
• Part number: 2RL 008 061-101
