Product description

HELLA Black Magic Edgeless Pro Mini 7 inch LED Lightbar

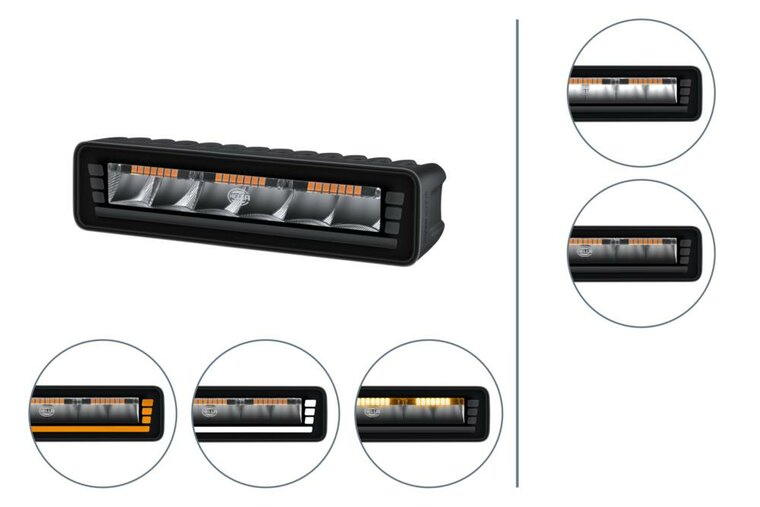

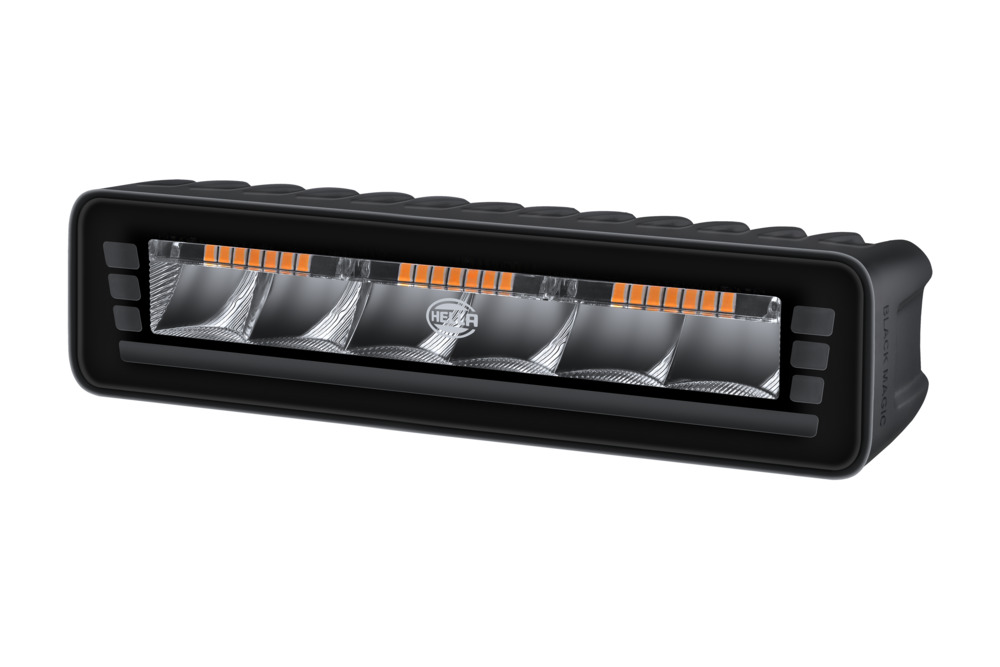

The HELLA Black Magic Edgeless Pro Mini is a compact 7 inch LED lightbar for vehicles that require additional forward visibility and vehicle conspicuity. This version combines high beam, white/amber position light and a flashing warning signal in one slim housing.

Spot beam with multiple light functions

With its spot beam pattern and 2,152 lumens light output, this LED lightbar supports forward visibility. The lamp also features white and amber position light and a flashing warning signal with 1 flash pattern, helping the vehicle stand out in different working and driving situations.

Compact aluminium housing for surface mounting

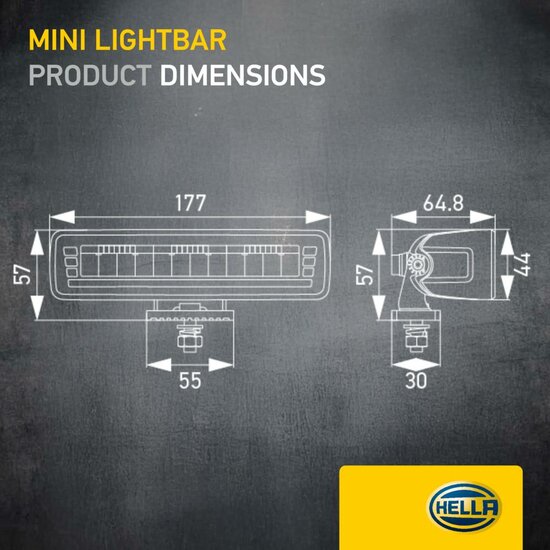

The black aluminium housing, clear polycarbonate lens and slim edgeless design make this lamp suitable for clean installation on commercial vehicles, pick-ups, off-road vehicles and work vehicles. The lamp measures 176.6 mm wide, 44.1 mm high and 64.8 mm deep.

ECE approved and protected for demanding conditions

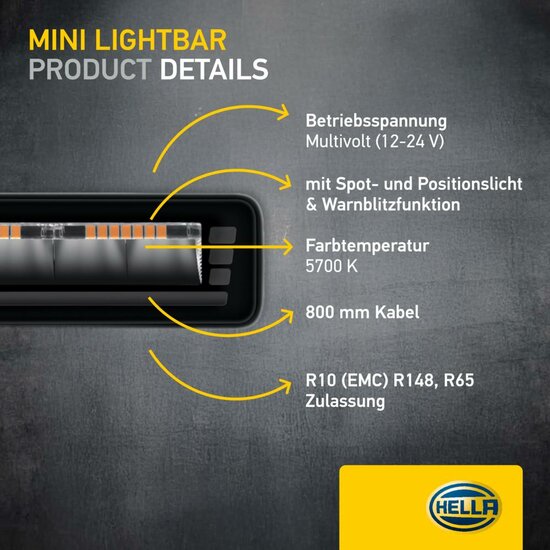

The HELLA Black Magic Edgeless Pro Mini is ECE approved and fulfils ECE R10, R65 and R148. With IP68/IP69K protection, the lamp is dustproof and waterproof. It is suitable for 12/24V systems and is supplied with open cable ends, an 80 cm cable, general manual and mounting material.

Main features

• 7 inch LED lightbar from the HELLA Black Magic Edgeless Pro Mini series

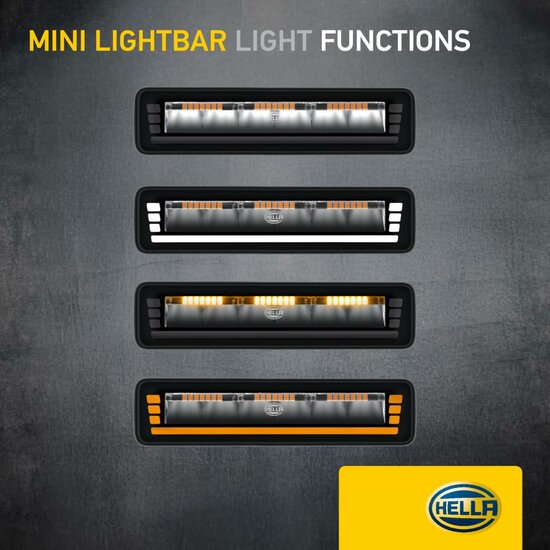

• High beam, white/amber position light and flasher in one lamp
• 2,152 lumens light output and spot beam pattern
• ECE R10/R65/R148 and IP68/IP69K
• Black aluminium housing with clear polycarbonate lens

Note: always check whether the use of high beam, position light and flashing warning signal is permitted under the applicable regulations for your vehicle and application.
