Product description

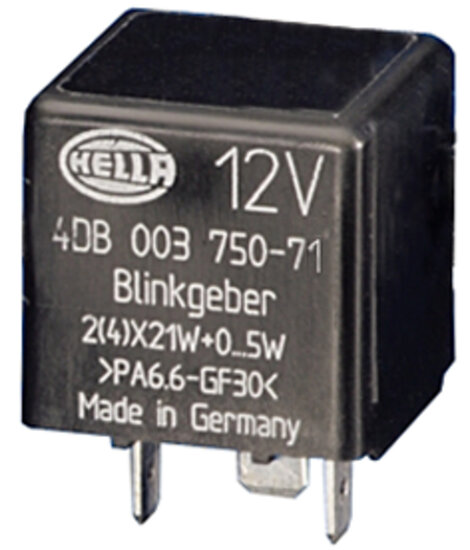

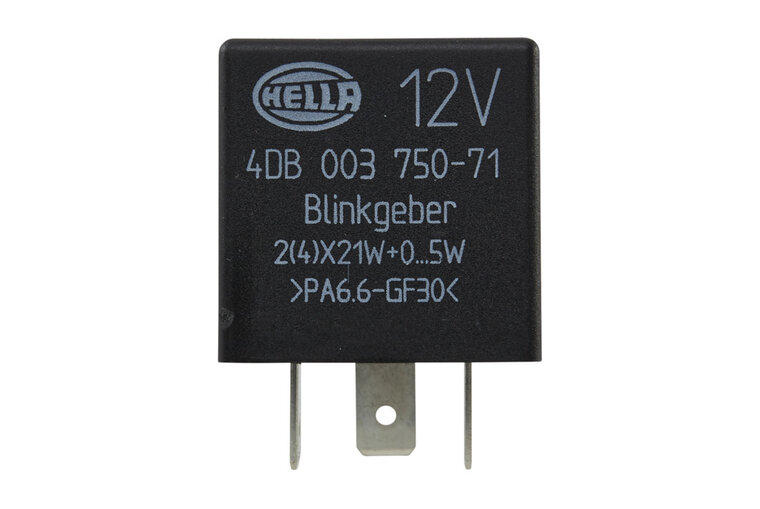

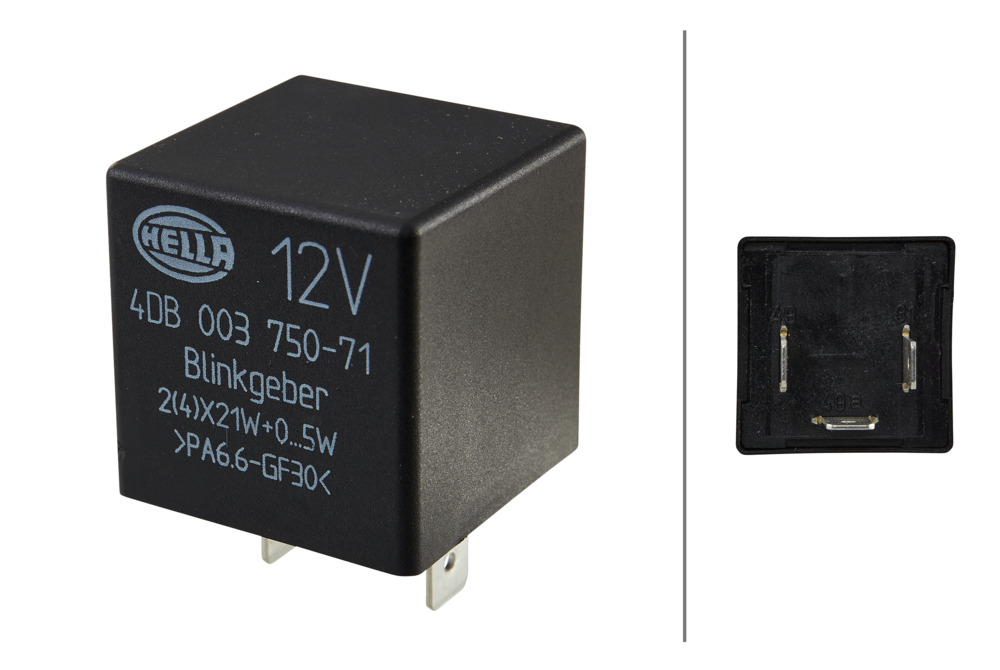

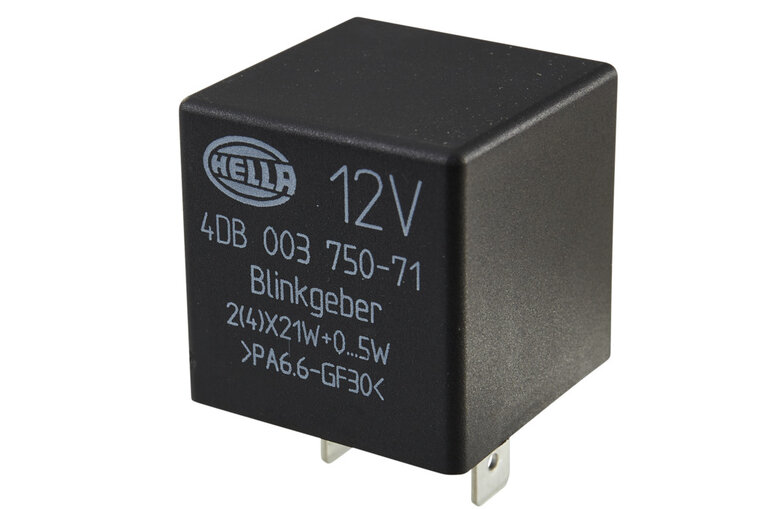

HELLA 4DB 003 750-711 12V 3-Pin Flasher Relay

The HELLA 4DB 003 750-711 is an electronic 12V flasher relay with a 3-pin connection. It provides reliable operation of vehicle indicator systems and supports multiple bulb configurations.

Supports multiple bulb configurations

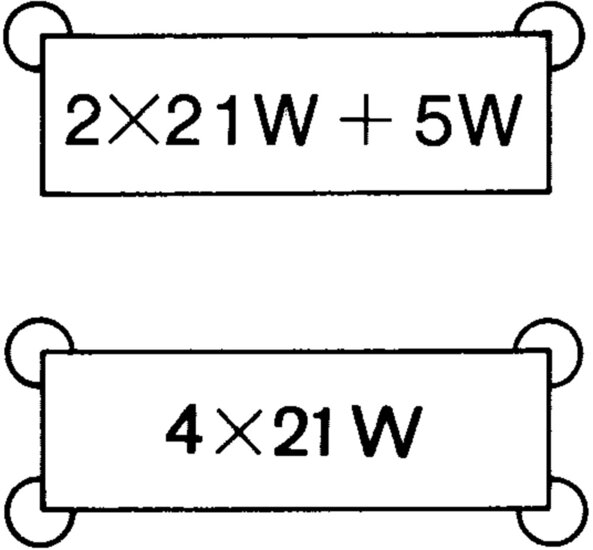

This flasher relay is suitable for systems using 2 × 21W + 5W or 4 × 21W bulbs. It operates at a flashing frequency of 90 ± 30 flashes per minute with a duty cycle of 50 ± 5%.

Reliable operation

Designed for an operating voltage range of 10 to 15V and temperatures from -40 °C to +85 °C, this relay is suitable for demanding automotive applications. The 3-pin design allows straightforward installation.

Key features

• HELLA electronic flasher relay
• 12V nominal voltage

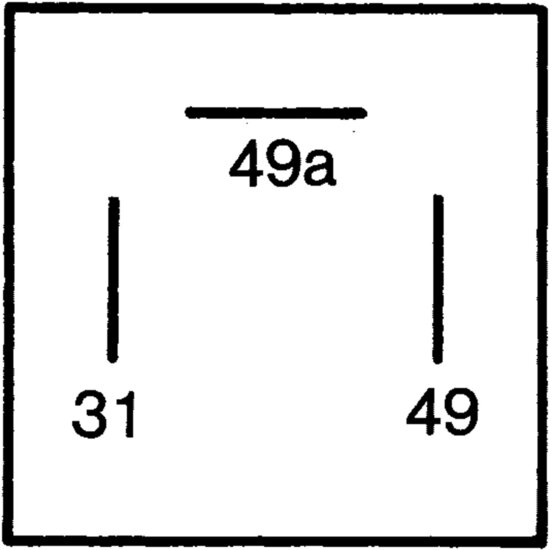

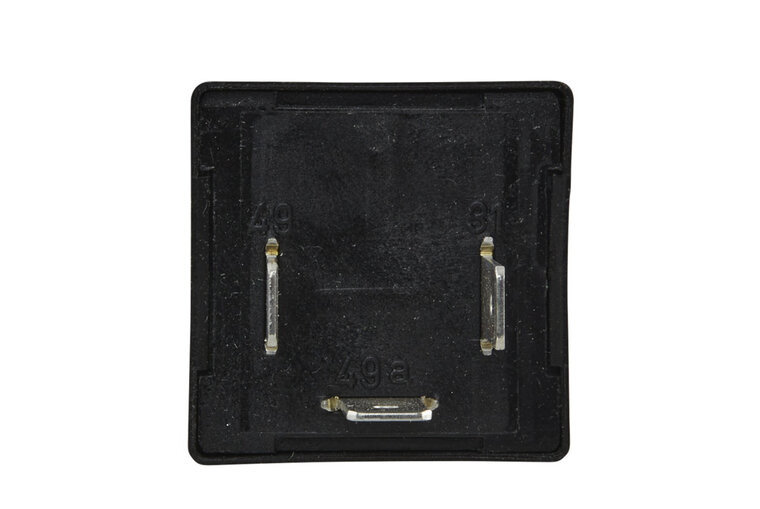

• 3-pin connection
• Suitable for 2 × 21W + 5W or 4 × 21W
• Flashing frequency: 90 ± 30 flashes per minute
• Duty cycle: 50 ± 5%
• Operating voltage: 10-15V
• Operating temperature: -40 °C to +85 °C
• Supplied without mounting bracket
