Product description

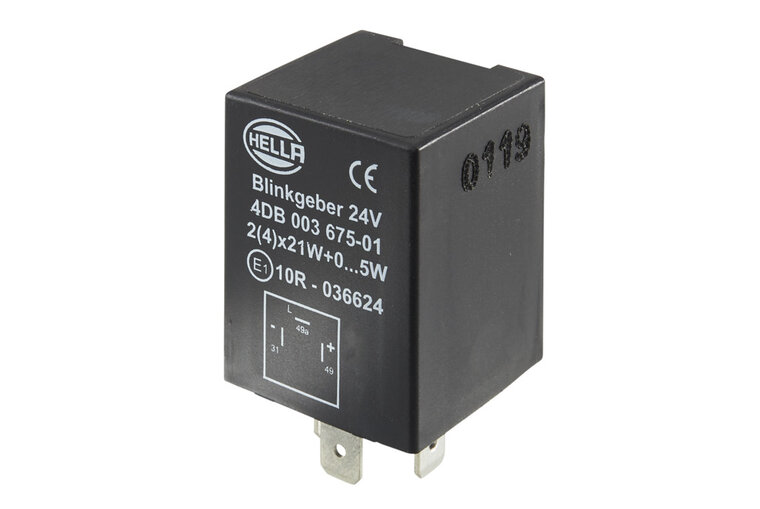

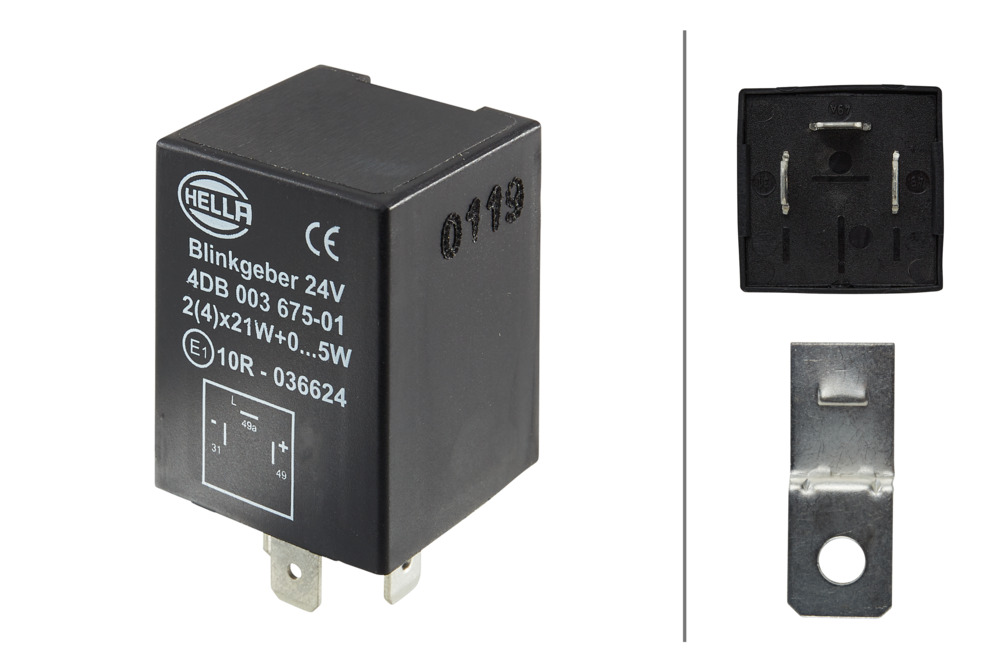

HELLA 4DB 003 675-011 24V 3-Pin Flasher Relay

The HELLA 4DB 003 675-011 is an electronic 24V flasher relay with a 3-pin connection. It provides reliable flashing performance for commercial vehicles and other 24V electrical systems.

Consistent flashing performance

The relay operates at a flashing frequency of 87.5 ± 12.5 flashes per minute with a duty cycle of 50 ± 3%, ensuring consistent indicator operation within the specified voltage range.

Built for demanding environments

Designed to operate from 20 to 30V and in temperatures from -40 °C to +85 °C, this relay is suitable for demanding vehicle applications. The 3-pin plug-in connection allows straightforward installation.

Technical specifications

This flasher relay is supplied without a mounting bracket and is intended for 24V vehicle electrical systems.

Key features

• HELLA electronic flasher relay
• 24V nominal voltage
• 20-30V operating range

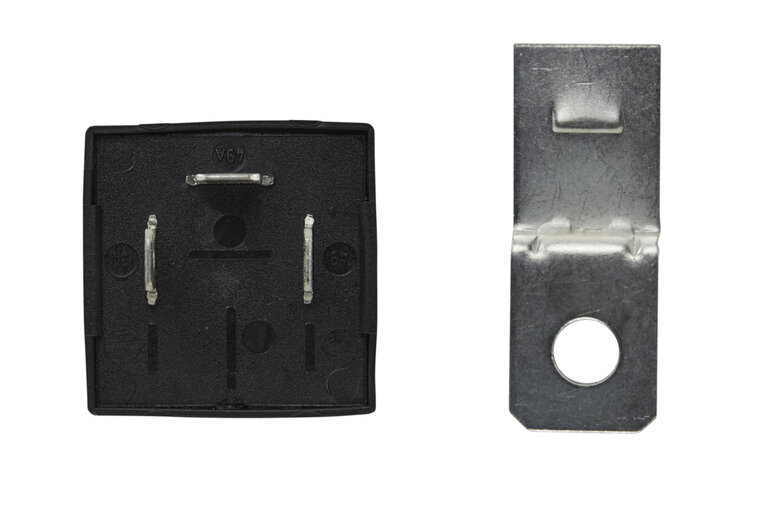

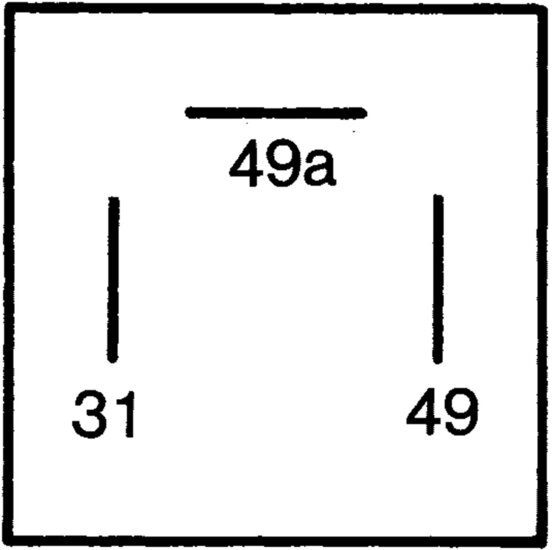

• 3-pin plug-in connection
• Operating temperature: -40 °C to +85 °C
• Flashing frequency: 87.5 ± 12.5 flashes per minute
• Duty cycle: 50 ± 3%
• Supplied without mounting bracket
