Product description

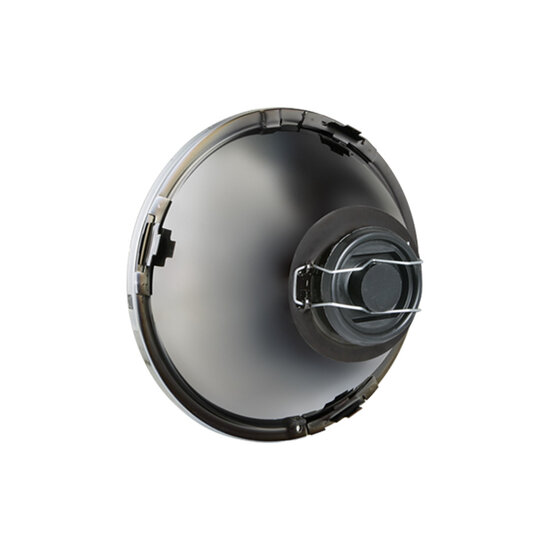

Headlamp round Ø144mm (5 3/4 inch) H4 built-in ECE-approved

This headlamp is often installed in old American, English, and Japanese vehicles. The headlamp has spherical glass and is of high quality. Suitable for right-hand traffic.

Can be used on both left and right sides. Comes with a lamp rubber. Bulbs must be ordered separately, 1x H4 halogen bulb. The connection is Plug & Play via the original connector on the back of the halogen bulb. This is an original Wesem product.

We also supply this headlamp with a city light included. See article number RE.38307. Also available with an R2 lamp fitting on request.

Attachments

144mm.pdf

Product specification

General Specifications
remove
Shape
Round
Type
Built in
Manufacturer
Wesem
Light Source
Halogen / Bulb
Side
Universal
Including Bulbs
No
Wesem Article Number
RE.02707
ECE-approval
Technical Specifications
remove
Protection Rate
IP54
Voltage
12-24V
Connection
Inside Lamp
Noddle Glass
Yes
Lamp Apeture
Yes
Reference Number
12,5
Material Housing
Metal
Light Functions
remove
Low Beam
High Beam
Bulbs
remove
12V H4 P43t 60/55W (passing and driving light)
Excluding
24V H4 P43t 75/70W (passing and driving light)
Excluding

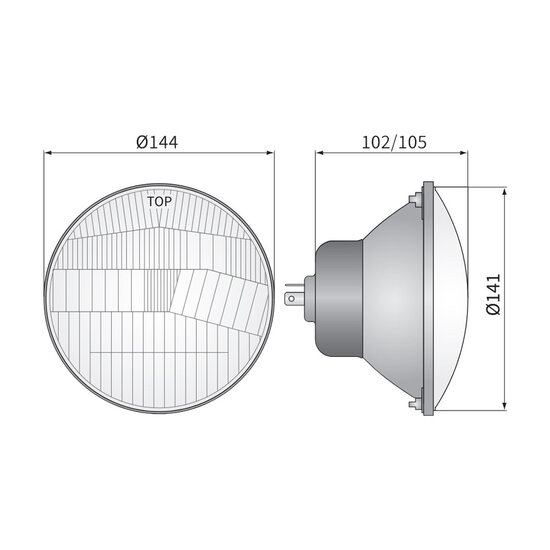

Dimensions
remove
Diameter
Ø144 mm
Diameter Glass
Ø141 mm
Thickness
105 mm
Accessories
remove
Lamp rubber
Including
Suitable for LED Retrofit
Yes

Headlamp Round Ø144mm H4 Built-in 5 3/4 Inch

0 reviews
Wesem

Curved glass | Wesem built-in headlamp | 2 light functions (low beam and high beam) | IP54 | Dimensions: Ø144x105mm | Excl H4 Lamp | E-Mark

Product number: RE.02707.00

€ 26,65 excl. VAT
Price per piece
€ 32,25 incl. VAT
Price per piece
In stock (26)
